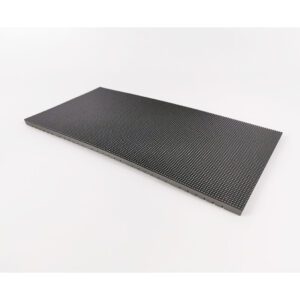

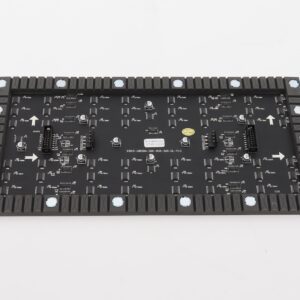

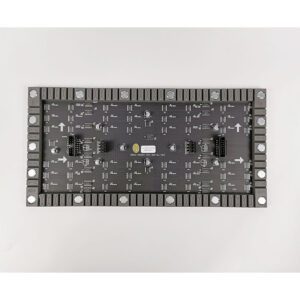

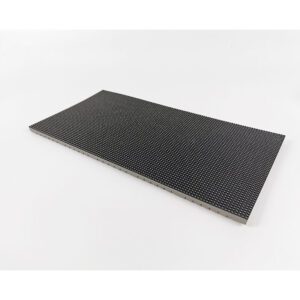

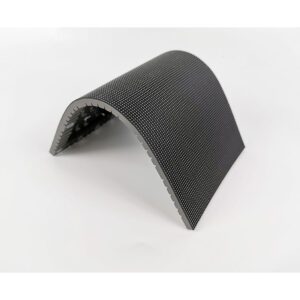

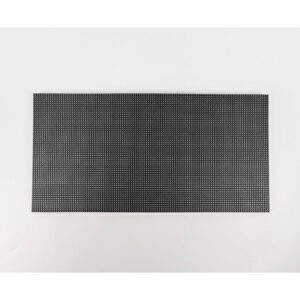

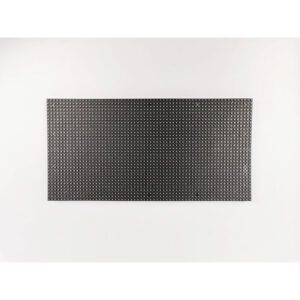

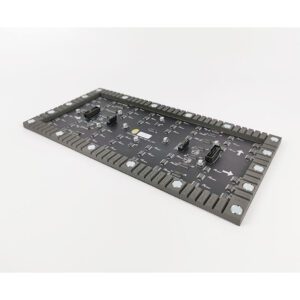

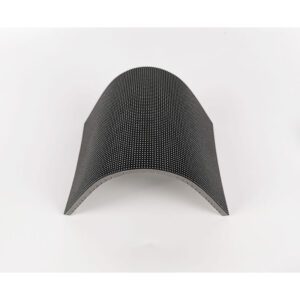

P2.5 Flexible LED Display Panels 320mmx160mm Indoor Flexible Soft LED Display Module

Original price was: $46.00.Current price is: $42.00.

  • Pixel Pitch: 2.5mm
  • Module Size: 320*160mm
  • Module Resolution: 128*64
  • With Bottom Frame
  • 1920HZ Refresh Rate
  • CE,RoHS,FCC Approved
  • 2 Years Warranty
or
SKU: LCC-P2.5-128X64-F-1 Categories:

Share:

P2.5 Flexible LED Display Panels 320mmx160mm Indoor Flexible Soft LED Display Module

P2.5mm Flexible Soft LED Display Module Size is 2320mmx160mm With 128×64 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun HUIDU LED Control Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

P2.5 Flexible LED Display Panels 320mmx160mm Indoor Flexible Soft LED Display Module Main Specifications:

Module Specifications
1 Pixel Pitch 2.5mm
2 Pixel Configuration SMD3in1
3 Module Resolution 128x64 pixels
4 Module Pixles 8192 pixels/module
5 Module Size 320x160mm
Specifications
1 Screen Brightness ≥1000cd/m2
2 Driving Method 1/32 scan
3 Min Viewing Distance 2m
4 Max. Power Consumption 580W/m2
5 Average Power Consumption 200W/m2
6 Gray Level 14bits input, 4096 levels(212)
7 Display Color 16M
8 Frame Frequency ≥60Hz
9 Refresh Frequency ≥1920Hz
10 Uninterrupted Working Hours ≥72 hours
11 Screen Life-span ≥100,000 hours
12 MTBF ≥5,000 hours
13 Discrete Blind Spot Rate <1/10000
14 Continuous Blind Spot Rate None
15 Blind Spot Rate <1/10000
16 Screen Plainness <±1mm
17 Power Supply Mode AC220±10%  50Hz/AC110±10%  60Hz
18 Environment Temperature & Humidity Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH
19 Control Mode Synchronous display with control PC by DVI
20 Control System DVI video card + full color control card + fiber system( optional)
21 Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
22 Interface Standard Ethernet
23 Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
