P1.56 P1.953 P2.604 P2.976 P3.91 P4.81 Soft Flexible Led Module

P1.56 P1.953 P2.604 P2.976 P3.91 P4.81 Indoor Outdoor Flexible LED Display Module 250mmx250mm

High Flexibility
Ultra-high flexibility allows the module to be bent into concave and convex shapes, meeting various creative screen requirements.

Magnetic Modules
The modules are designed as front service ways with adsorption capacity. Easy installation and replacement.

Top Cover Design
With top covers to protect the power and signal sockets, offering a higher protection grade.

Tolerance Requirements:
LED display products, especially flexible ones, need to consider not just display and design aspects but also the overall physical and mechanical factors.

The production process involves PCB design, bottom shell molding, and arrangement of electronic components. Hence, if manufacturing these modules is based on a specific design, the tolerance of the final product (i.e., how much it can vary from the intended design) should be taken into account.

Importance: Ensuring the module aligns closely with the design specifications guarantees consistent performance and appearance across various modules.

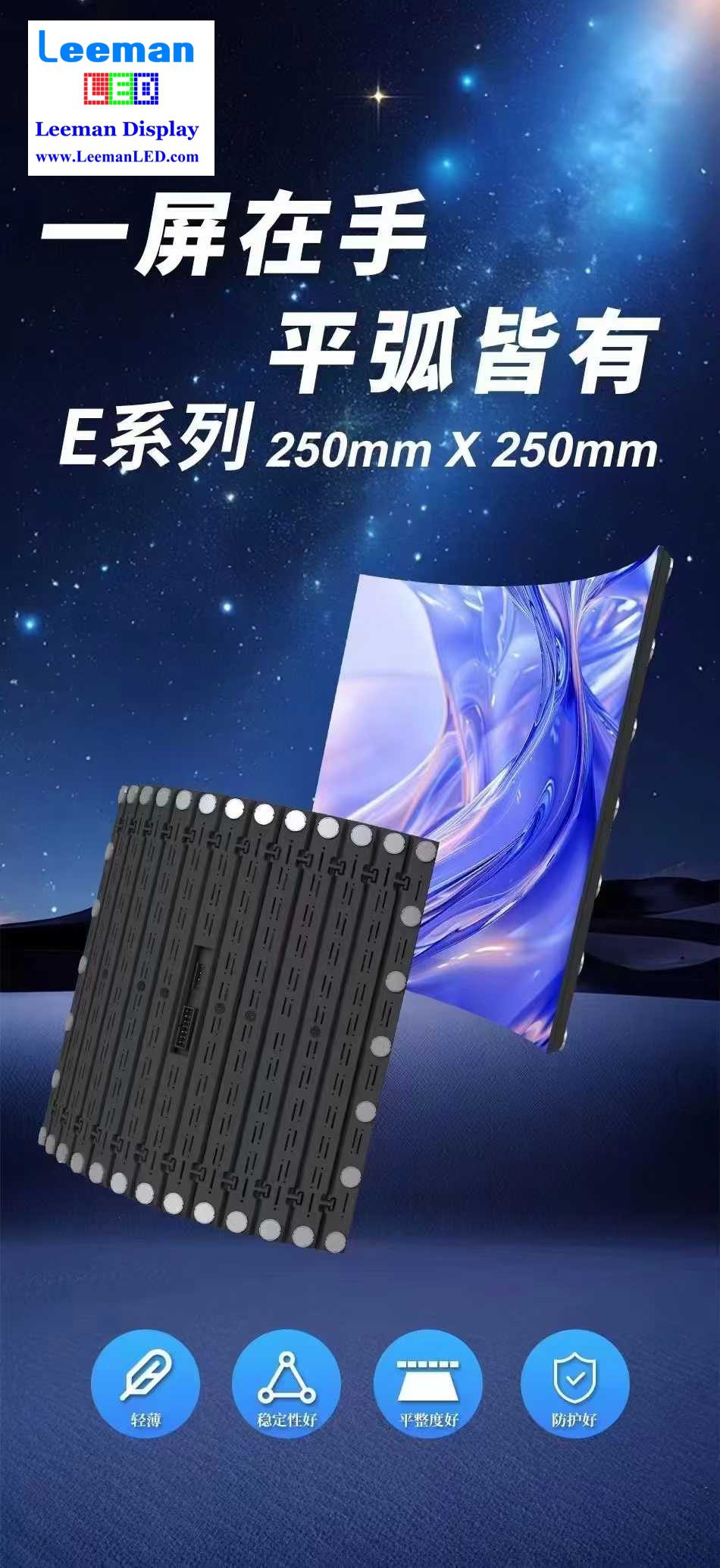

Leeman P1.56 P1.953 P2.604 P2.976 P3.91 P4.81 Soft Flexible LED Display Module 250×250
Model NO.	P1.953	P2.604	P2.976	P3.91	P4.81
Pixel Pitch	1.95mm	2.6mm	2.9mm	3.91mm	4.81mm
LED Chip Lamp	NationStar Gold Wire	NationStar Gold Wire	NationStar Gold Wire	NationStar Gold Wire	NationStar Gold Wire
LED type	SMD1415	SMD415	SMD1921	SMD1921	SMD2525
Flatness between modules	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm
Pixel configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module size (W*H)	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm
Module resolution (W*H)	128*128dots	96*96dots	84*84dots	64*64dots	52*52dots
Cabinet size(WHD)	1000100075mm	1000100075mm	1000100075mm	1000100075mm	1000100075mm
Cabinet resolution (W*H)	512*512dots	384*384dots	336*336dots	256*256dots	208*208dots
Cabinet weight	14.5kg/pc	14.5kg/pc	14.5kg/pc	14.5kg/pc	14.5kg/pc
Density	262144dots/m²	147456dots/m²	112896dots/m²	65400dots/m²	43264dots/m²
IC	ICN2153 ICN2065	ICN2153 ICN2065	ICN2153 ICN2065	ICN2153 ICN2065	ICN2153 ICN2065
Scan	32S	32S	21S	16S	13S
Best viewing distance	>1.9m	>2.6m	>3m	>4m	>5m
Best viewing angle	160°/ 120°	160°/ 120°	160°/ 120°	160°/ 120°	160°/ 120°
Brightness	5500-6000cd/m²	5500-6000cd/m²	6000-6500cd/m²	6000-6500cd/m²	6500-7000cd/m²
Working voltage	AC:110-240V 50~60Hz	AC:110-240V 50~60Hz	AC:110-240V 50~60Hz	AC:110-240V 50~60Hz	AC:110-240V 50~60Hz
Maximum power	≤600W/ m²	≤600W/ m²	≤600W/ m²	≤600W/ m²	≤600W/ m²
Average power consumption	100W/m²	200W/m²	200W/m²	200W/m²	200W/m²
Average power consumption	~300W / m²	~300W / m²	~300W / m²	~300W / m²	~300W / m²
Screen temperature rise(running state)	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees
Operation of Environmental Temperature/°C	-10°C~60°C	-10°C~60°C	-10°C~60°C	-10°C~60°C	-10°C~60°C
Operating Temperature	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH
Operating Temperature	No condensation	No condensation	No condensation	No condensation	No condensation
Screen color temperature	2000K～9500K	2000K～9500K	2000K～9500K	6500K～9500K	7000K～10000K
Driving method	1/32 scanning	1/32 scanning	1/32 scanning	1/16 scanning	1/16 scanning
Gray scale	16bits～24bits	16bits～24bits	16bits～24bits	16bits～24bits	16bits～24bits
Refresh frequency	≥3840Hz – 7680Hz	≥3840Hz – 7680Hz	≥3840Hz – 7680Hz	≥3840Hz – 7680Hz	≥3840Hz – 7680Hz
IP grade	Front:IP68	Front:IP68	Front:IP68	Front:IP68	Front:IP68
IP grade	Back:IP66	Back:IP66	Back:IP66	Back:IP66	Back:IP66
Continuous working time	≥7×24hrs	≥7×24hrs	≥7×24hrs	≥7×24hrs	≥7×24hrs
Lifetime	100,000hrs	100,000hrs	100,000hrs	100,000hrs	100,000hrs

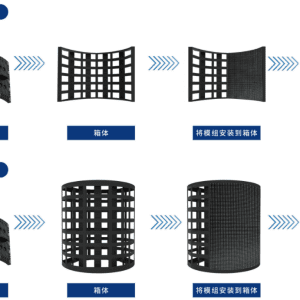

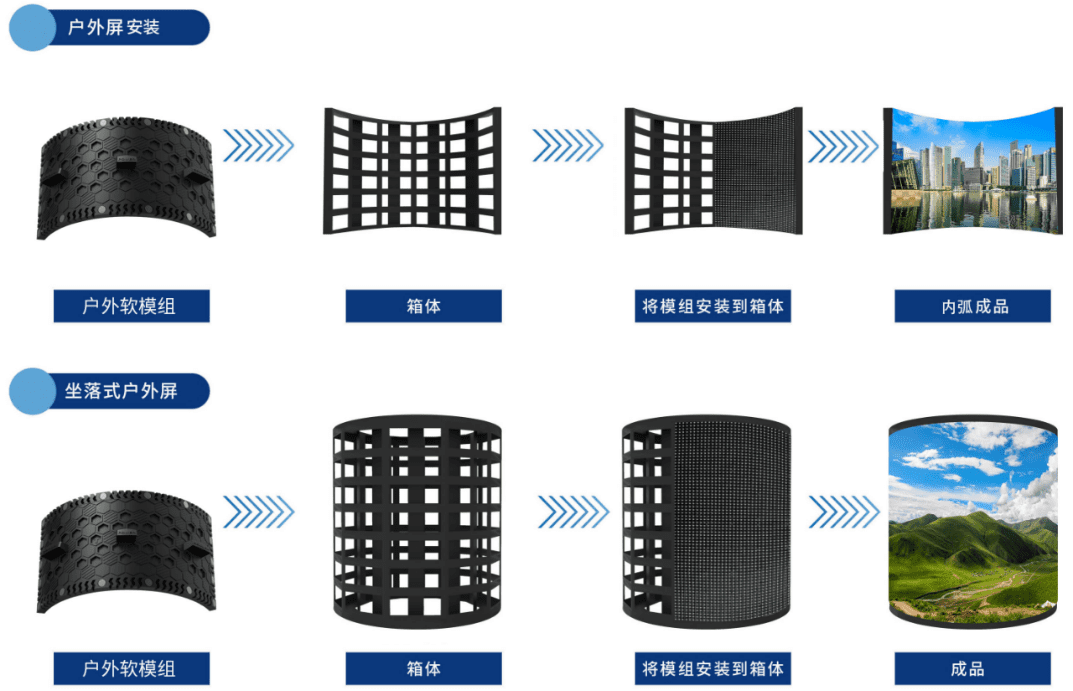

Installation method	Back Frame Installation / Hoisting / Inner Arc Installation
Pixel correction	Equipped with point – by – point brightness and chromaticity correction
Contrast ratio	6000:1
Grey scale/colors	256levels of each color(RGB)/16.7M colors
Control mode	Synchronization control
Control distance	Super five double stranded network cable, more than 100 meters using optical fiber transmission
Software interface	Windows XP /7/8/10 IOS
Signal input	HDMI、DVI, VGA, USB, LAN（Extensible interface）
Cabinet material	Waterproof Die-casting Aluminum
PowerCon	Neutrick Power connector with cable
EtherCon	Neutrick Power connection with cable
Maintenance method	Dual Service, Front Maintenance and Back service
Warranty time	5 years warranty time and free lifetime technical support
Certification	UL CE ETL ROHS EMC FCC ISO, IECEE, CB
