Novastar VX4S VX6s VX16S VX4S-N VX4U LED Video Processor All-in-1 Controller

Original price was: $1,070.00.Current price is: $1,050.00.

NovaStar VX4S supports 2 simultaneous input sources up to 1920×1200 and an output capacity of up to 2.6 million pixels by utilizing the 4 RJ45 outputs.

or
SKU: NOVA-VX4S Categories:

Share:

Novastar VX4S VX6s VX16S VX4S-N VX4U LED Video Processor All-in-1 Controller Details

Novastar VX4S LED Video Processor is a professional LED display controller.

it also features in powerful front end processing, so it doesn’t need an external scalar.



Novastar VX4S VX6s VX16S VX4S-N VX4U LED Video Processor All-in-1 Controller features

Specification
Input Power AC100~240VAC,50/60Hz
Overall Power Consumption 25W
Operating Temperature -20~60℃
Dimensions 482.6mm × 251.5mm × 45mm
Package dimensions 550mm × 400mm × 175mm
Net weight 2.55 Kg
Total weight 5.5 kg



  • The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution.
  • Provide seamless high-speed switching and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality.
  • The location and size of PIP can both beadjusted, which can be controlled at will.
  • Adopt the NovaStar G4 engine; the screen is stable and flicker free without scanning lines; the images are exquisite and have a good sense of depth.
  • Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors.
  • HDMI/external audio input.
  • 10bit / 8bit HD video source;
  • The loading capacity: 2.3 million pixels.
  • Support multiple controller montage for loading huge screen.
  • Support NovaStar’s new-generation point-by-point calibration technology; the calibration is fast and efficient.
  • Computer software for system configuration is not necessary. The system can be configured using one knob and one button. All operations can be done in a few steps. That’s what we call Easy Screen Configuration!
  • Adopt an innovative architecture to implement smart configuration; the screen debugging can be completed within several minutes; greatly shorten the preparation time on the stage.
  • An intuitive LCD display interface and clear button light hint simplify the control of the system.

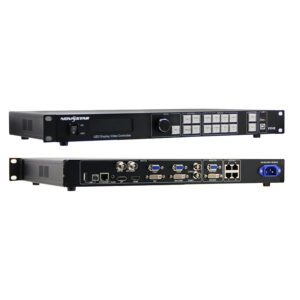

Novastar VX4S LED Video Processor Appearance

Novastar VX4S LED Video Processor Appearance

Novastar VX4S LED Video Processor Connect Diagram

Novastar VX4S LED Video processor Working Diagram

Novastar VX4S LED Video Processor Specifications

  • Novastar VX4S Controller Specifications V1.1.3
