Novastar SIM7100E PCIE 4G Module NovaStar Software VPlayer Android Studio Mode User Manual

Original price was: $78.00.Current price is: $76.00.

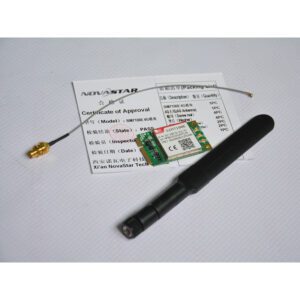

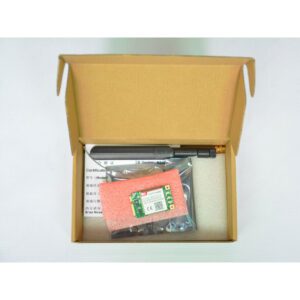

Novastar SIM7100E PCIE 4G Module

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: NOVA-4G-Module Categories:

Share:

Novastar SIM7100E PCIE 4G Module NovaStar Software VPlayer Android Studio Mode User Manual Details

SIMCOM SIM7000E Technical
Electrical specifications Output power GSM900: 2W
DCS1800: 1W
Supply voltage range 3.0V~ 4.3V, Typ: 3.8V* Operation
Consumption Power off: 7uA
PSM: 9uA
Sleep: 1mA
Idle: 11mA
Physical specifications Dimensions 24 X 24 X 2.6mm
Weight 3.0g
Working environment  temperature  -40℃ to +85℃
Features Support Tri-Band 4G FDD-LTE B3/B8/B20
Support 2G GPRS/EDGE 900/1800Mhz
Control Via AT Commands
GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)
Interfaces USB2.0 x 1 (high-speed)
UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)
SIM card x1 (1.8V and 3V)
I2C x 1
GPIO x 5
ADC x 1
Certifications CE*/ RoHS/REACH/TA/CCC*/CTA*
