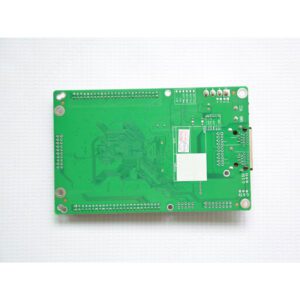

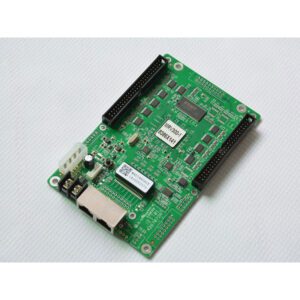

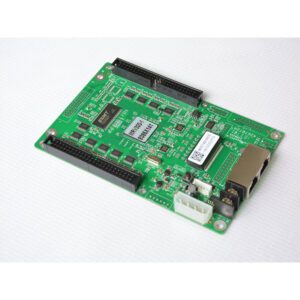

Novastar MRV300-1 LED Receiver Card Leeman LED Display

Original price was: $15.00.Current price is: $14.50.

  • Resolution :256 x 128 pixels
  • Working status monitoring
  • Power supply voltage detection;
  • Temperature monitoring;
  • Pre-store picture setting;
  • Support pixel level brightness/color calibration
  • Ethernet cable communication status detection;
  • 16 RGB data groups output (can be extended to 32 groups.)
or
SKU: NOVA-MRV300-1 Categories:

Share:

Novastar MRV300-1 LED Receiver Card Leeman LED Display Details & Specification

Novastar MRV300-1 LED Receiver Card max support 256*128 pixels.

And, MRV300-1 is the new receiver card from Nova, single card max support 256 x 128 pixels.



It has the following features:

  • outputs 16-group of RGBR ‘data; 20-group of RGB data; 64-group of serial data;
  • Configuration file readback;
  • Pixel-by-pixel brightness, and chromaticity calibration.
  • Comply with EU RoHs, and CE-EMC standard.

Specification

MIN TYP MAX UNIT
Rated voltage 3.3 5.0 5.5 V
Rated current 0.33 0.50 0.55 A
Working temperature -20.0~70.0
Working humidity 10.0~90.0 %
