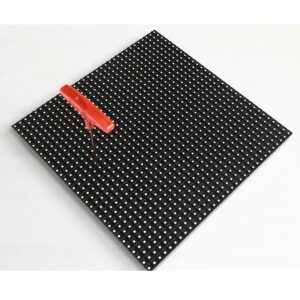

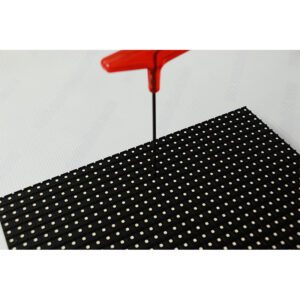

320×320 P10 LED Module Front Service Outdoor SMD LED Display Panel

Original price was: $29.99.Current price is: $27.00.

Pixel Pitch:10mm

LED Type: SMD3535

Module Size: 320*320 mm

Model Pixel: 32*32Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

SKU: LEEMAN-P10-32X32-Dual-Service Categories: Front Service SMD LED Module 320x320

Description

Shipping & delivery

320×320 P10 LED Module Front Service Outdoor LED Display Panel

Outdoor P10mm Front and Rear Service SMD LED Display Module Size is 320mmx320mm With 32×32 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

Outdoor P10 LED Display Module 320×320 Front Service Outdoor SMD LED Panel Main Specifications:

Items	Parameter
Product Model	P10mm outdoor Dual Service LED Module
Module size	320x320mm
resolution ratio	32*32dots
Pixel pitch	10mm
Pixel density	10000dots/sqm
Pixel configuration	SMD 3in1
Driving method	Constant Current Driving,1/2scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD3535
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1920HZ
Brightness in White Color (cd/m2):	5500-6000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤450W/m2 (MAX 850)
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	10m-100m
Input Voltage	110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72+ Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.

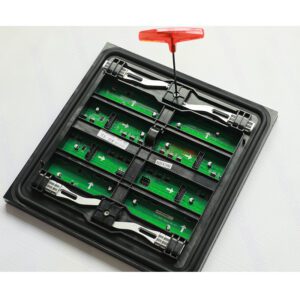

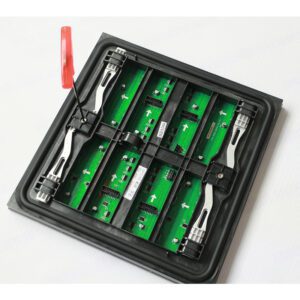

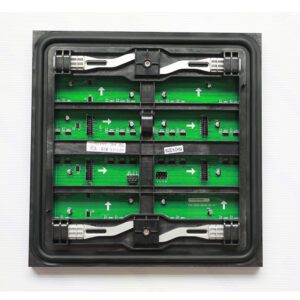

Front & Rear Maintanence Service:

Dual-mode maintenance (Front & Rear Service) outdoor LED module , saving the maintenance space and being compatible with hard installation conditions.
