320×320 Outdoor P4 LED Display Module Front Service LED Panel

Original price was: $58.88.Current price is: $48.00.

Pixel Pitch:4mm

LED Type: SMD1921

Module Size: 320*320 mm

Model Pixel: 80*80Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: Leeman-P4-80X80-Dual-Service-10S Categories:

Share:

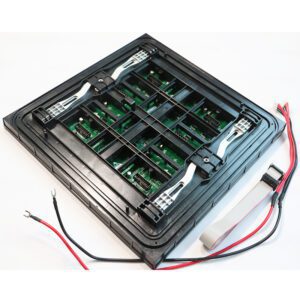

320×320 Outdoor P4 LED Display Module Front Service LED Panel

Outdoor P4mm Front and Rear Service SMD LED Display Module Size is 320mmx320mm With 80×80 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
  • If you want to build led screen,please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

320×320 Outdoor P4 LED Display Module Front Service LED Panel Main Specifications:

Items Parameter
Product Model P4mm outdoor Dual Service LED Module
Module size 320x320mm
resolution ratio 80*80dots
Pixel pitch 4mm
Pixel density 62500dots/sqm
Pixel configuration SMD 3in1
Driving method Constant Current Driving,1/10scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD1921

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥1920HZ
Brightness in White Color (cd/m2): 5500-6000 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤450W/m2 (MAX 850)
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 4m-40m
Input Voltage 110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72 Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.

Front & Rear Maintanence Service:

Dual-mode maintenance (Front & Rear Service) outdoor LED module , saving the maintenance space and being compatible with hard installation conditions.
