VDWALL LVP609 4K LED Panel Video Processor

Original price was: $1,755.00.Current price is: $1,700.00.

VDWALL LVP609 Series (LVP6092 LVP6093 LVP6094) 4K 60Hz LED Video processor widely applys small oixel pithc and ultra HD LED screen,video conference,TV studio,rental,staging,exhibition and etc.

or
SKU: VDWALL-LVP609 Categories:

Share:

VDWALL LVP609 4K LED Panel Video Processor

Full Color LED display Controller, LED display Media Processor

The best price is for LVP6092.  It has 4 outputs with 800M pixels;  LVP6093 has 6 outputs with 1200M pixels. LVP6094 has 8 outputs with 1650M pixels.

1. Faroudja® Real Color® Real Color Image Processing,10+ Bit Faroudja® DCDIDe-interlacing Processing,Faroudja® TureLife™Augmented Video and Image

2. Advanced interlacing Processing Technology for mobile images,smear ghost and jag in the mobile images can be removed.

3. Fast processing for ultra 4K2K@60Hz HD images via hardware

4. Real Pole-definition video processor. Single HDMI port can receive 4k2k@60Hz pole-definition signal. After sync processed in processor , It would output 4*1920x1080_60Hz windows showed on the 4K2K_60Hz screen pixel to pixel. Or any interception, stepless zoom in and zoom out for any LED screens with any resolution. There is no need for complicated software setup.

5. It supports fully spare, and it offers a safe and steady solution for high-reliability-backup

6. Outputs:Ultra HD+HD+SD、Analog+Digital,among which:HDMI2.0(4K2K@60Hz)x 2,DP x 1,CVBS x 1, VGA x 1, DVI x 1, SDI / HD-SDI x 1,Seamless Switching, Fade-in / Fade-out between any inputs.

7. Outputs:8*DVI HD outputs. Each output port can reach 1920*1080_60Hz

8. Sync monitoring 4K2K@60Hz windows on 1080p display

9. One key to any of the preset modes,and any mode of the seamless switching, Fade-in / Fade-out can be freely called

10 It is easy and convenient to set up by the front panel or RS232/USB/LAN interface.

VDWALL LVP609 4K LED Panel Video Processor Inputs
Quantity /Type 2×Video

1×VGA(VESA)

1×DVI(VESA)

1×HDMI 2.0((VESA/CEA-861)

1×SDI(SDI/HD-SDI/3G-SDI)

Video system PAL/NTSC
Composite video amplitude Impedance 1V(p_p)/ 75Ω
VGA Format PC(VESA) ≤1920×1200_60Hz
VGA amplitude Impedance R、G、B = 0.7 V(p_p)/ 75Ω
DVI Format PC(VESA) ≤1920×1200_60Hz
HDMI Format(HDCP2.0) PC(VESA) ≤3840×2160_60Hz
HDMI2.0(CEA-861)
SDI Format SMPTE259M-C

SMPTE 292M

SMPTE 274M/296M

SMPTE 424M/425M

480i_60Hz

576i_50Hz

720p、1080i、1080p

Input connectors Video: BNC/ 75Ω
VGA:15pin D_Sub(Female)
DVI:24+1 DVI_DHDMI:HDMI ATYPESDI:BNC/ 75Ω

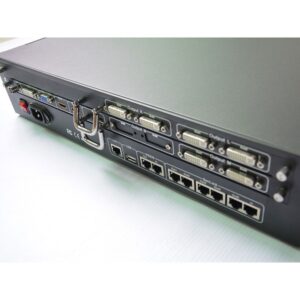

Output
Quantity /Type 8×DVI
DVI Format 1920×1080_60Hz
Output connectors DVI:24+1 DVI_D
Others
Control RS232/USB/LAN
Input voltage 100-240VAC   50/60Hz
Overall power consumption ≤70W
Environment temperature 0-45℃
Environment humidity 15-85%
Product size 483(L) x 338(W) x94(H)mm
Carton size 540(L) x 400(W) x 180(H)mm
Net weight 5.95Kg
Gross weight 8.8Kg
