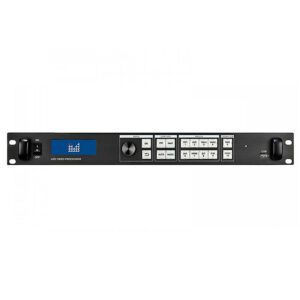

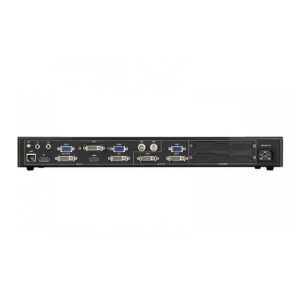

Magnimage LED-550DS LED Controller Video processor

Original price was: $665.00.Current price is: $650.00.

LED-550DS series is a high performance full color LED video processor which has 16 switching effects
including fade in/ fade out, cut, switch and so on.It can customize any DVI input resolution improve the system

or
SKU: Magnimage -550DS Categories:

Share:

Magnimage LED-550DS LED Controller Video processor

LED-550DS series is a high performance full color LED video processor which has 16 switching effectsincluding fade in/ fade out, cut, switch and so on.It can customize any DVI input resolution improve the systemstability, customized output resolution based on real specification of LED screen to reach the effect of pixel topixel display. Intelligent seamless splicing technology of super size LED screen with multi-sending card imagesplicing.The unique synchronous follow,up technology ensure the image is fluent and no dislocation and trailingwhen it’s high speed action.



Magnimage LED-550DS LED Controller Video processor Technical Specification

Inputs

Ports No. Resolution Specification
AV 2 PAL NTSC SECAM
VGA 2 VESA
DVI 2 VESA(1080i)
HDMI 1 HDMI 1.3
SDI* 1 3G SDI

Outputs

Ports No. Resolution Specification
DVI loop 1 Same as DVI input
SDI loop* 1 3G SDI
VGA 1 1024×768/60Hz/75Hz/85Hz/100Hz/120Hz

1280×1024/60Hz   1440×900/60Hz

1680×1050/60Hz   1600×1200/60Hz

1600×1200/60Hz-Reduced

1920×1080/60Hz/50Hz

2560×816/60Hz    1920×1200/60Hz

2048×640/60Hz    2560×816/60Hz

2304×1152/60Hz      2048×1152/60Hz

1024×1280/60Hz  1536×1536/60Hz

Customized output resolution:

Horizontal Max Resolution 3840pixel ; Min 640

Vertical Resolution: Max 1920; Min 480

DVI 2

* Optional

 Cosole specification

Power supply 100~240 AC 50/60Hz
Power consumption 25W
Operation temperature 0~45℃
Product dimension(LWH) 483.0×288.0×54.5mm
Packing dimension(LWH) 555.0×395.0×125.0mm
N.W. 2.6kg
G.W. 4.1kg
