P6 Outdoor Rental LED Video Screen 576x576mm LED Display Panel

Original price was: $450.00.Current price is: $440.00.

P6 Outdoor Rental LED Video Screen 576x576mm Panel, 27,778pixel/sqm, 6500cd/sqm brightness, outdoor HD rental LED display. High display performance competitive price.

or
SKU: P6-OR8S-SMD3535-32x32-L576xH576 Categories:

Share:

P6 Outdoor Rental LED Video Screen 576x576mm LED Display Panel

Notice before order:

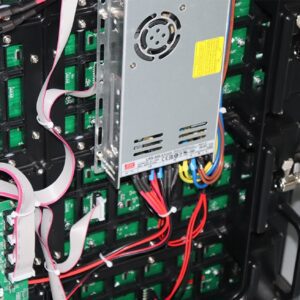

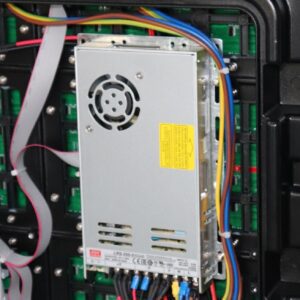

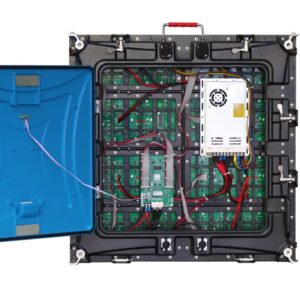

1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

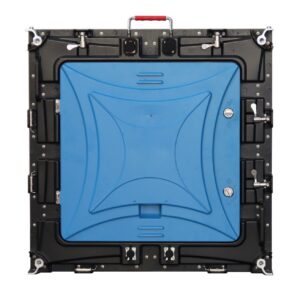

P6 Outdoor Rental LED Video Screen 576x576mm Panel Features :

1) Slim cabinet, only 80mm thick.

2) Light weight, only 12KG per pcs of 576x576mm outdoor cabinet.

3) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.

4) Fast lock design, good for rental hanging use.

5) IP65 for both front side and IP54 for rear side.

P6 Outdoor Rental LED Video Screen 576x576mm Panel Applications:

Outdoor rental LED panel

Outdoor rental LED display screen

P6 Outdoor Rental LED Video Screen 576x576mm LED Display Panel Parameters:

LED Lamp Specification

Color Package Intensity Viewing angle Wavelength Testing condition
Red

SMD3535

800-1100mcd

120°

620-625nm

25℃,20mA

Green

SMD3535

1600-2250mcd

120°

515-530nm

25℃,20mA

Blue

SMD3535

350-500mcd

120°

465-475nm

25℃,20mA

Module Parameter

Pixel Pitch 6mm
Pixel Configuration SMD3535
Density 27,778 pixels/㎡
Module Resolution 32pixel(L) * 32pixel(H)
Module Dimension 192mm(L) * 192mm(H) * 25mm(D)
Driving Mode Constant current, 1/4 duty
Module Mask Pure black mask—high contrast screen

LED Cabinet

Module Quantity in a Cabinet 3(L) *3(H)
Cabinet Dimension 576(L)*576(H)* 80(D)mm
Cabinet Resolution 96(L) * 96(H)
Cabinet Material Die Cast Aluminum
Cabinet Weight ≈12KG

Electricity Parameter

Optical Ratings
Brightness ≥6,500 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥6m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz  Switchable
Max. Power Consumption 850 W/㎡
Avg. Power Consumption 280W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65(front), IP54(rear)
Out-of-Control Pixel Rate ≤0.01%
