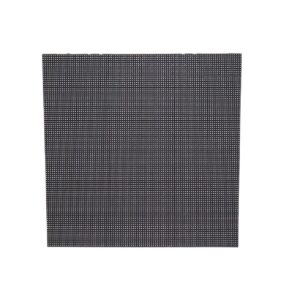

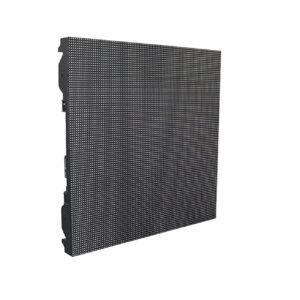

P10 Fixed installation LED Panel Screen Outdoor 960x960

P10 Fixed installation LED Panel Screen 2S Outdoor SMD3535 960x960mm Die-casting Aluminum

Notice before order:

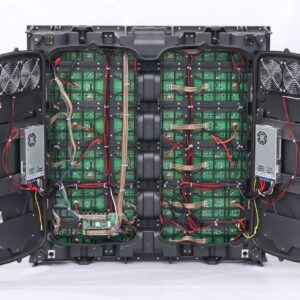

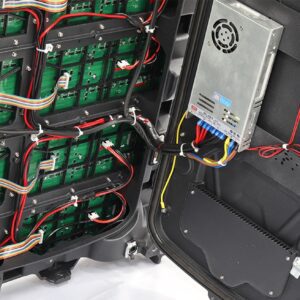

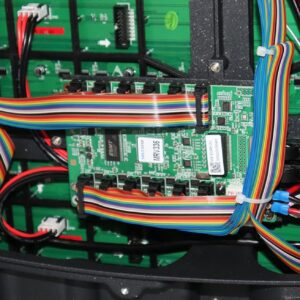

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P10 2S Outdoor SMD3535 960x960mm Die-cast Fixed installation LED Panel Screen Features:

1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.

2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness

difference is within 10%.

3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.

4) High Level waterproof level which is suit for outdoor fixed installation.

5)1920HZ refresh rate, 14bit color depth 10,000 pixel/sqm.

6) Easy to move and install .

P10 2S Outdoor SMD3535 960x960mm Die-cast Fixed installation LED Panel Screen Applications:

Exterior advertising LED display

Exterior rental LED display

P10 Fixed installation LED Panel Screen 2S Outdoor SMD3535 960x960mm Die-casting Aluminum Parameter:

Module Parameter
Pixel Pitch	10mm
Pixel Configuration	SMD3535
Density	10,000 pixels/㎡
Module Resolution	32pixel(L) * 16pixel(H)
Module Dimension	320mm(L) * 160mm(H) * 25mm(D)
Driving Mode	Constant current, 1/2 duty
Module Mask	Pure black mask—high contrast screen

LED Cabinet
Module Quantity in a Cabinet	3(L) * 6(H)
Cabinet Dimension	960（L）* 960（H）* 144(D)mm
Cabinet Resolution	96(L) * 96(H)

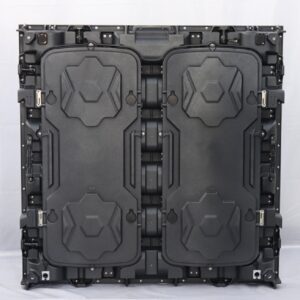

Cabinet Material	Die-Cast magnesium alloy
Cabinet Weight	≈25KG
Electricity Parameter
Optical Ratings
Brightness	≥7,500 cd/㎡
Viewing Angle	120°(Horizontal); 120°(Vertical)
Best Viewing Distance	≥10m
Gray Grade	14 bits
Display Color	4.4 trillion Colors
Brightness Adjustment	100 grades by software or automatically by sensor
Operation Power	AC100-240V 50-60Hz Switchable
Max. Power Consumption	975W/㎡
Avg. Power Consumption	325W/㎡
Control System
Frame Frequency	≥60Hz
Refresh Frequency	≥1,920Hz
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100m(Ethernet cable);
Control Distance	20KM(optical fiber cable)
Support VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	5000—9300 adjustable
Brightness Correction	Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature	-20～+60 ºC
Storage Temperature	-30～+70 ºC
Working Humidity	10%～90% RH
Lifetime	100,000 hours
MTBF	5000 hours
Continuous Operating Time	≥72 hours
Protection Grade	IP65(front), IP54(rear)
Out-of-Control Pixel Rate	≤0.01%
