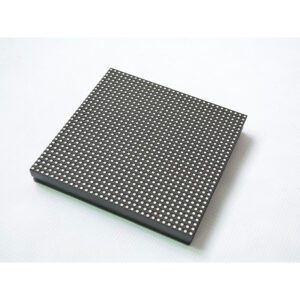

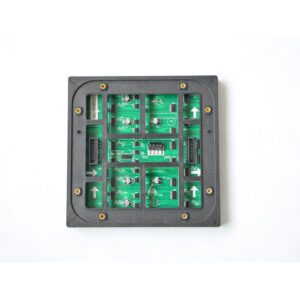

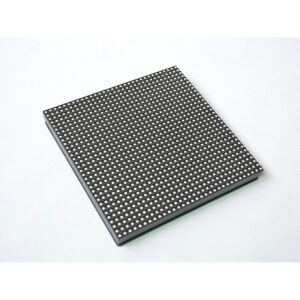

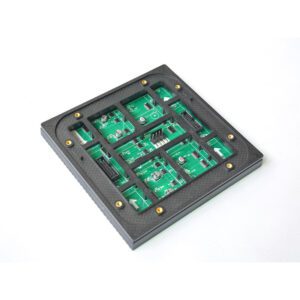

P5 LED Panel P5 LED Module Outdoor SMD 160x160mm LED Board
$22.00 Original price was: $22.00.$21.00Current price is: $21.00.
Pixel Pitch:5mm
LED Type: SMD2525
Module Size: 160*160 mm
Model Pixel: 32*32Pixels
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
Categories: Outdoor SMD LED Module
Share:
P5 LED Panel P5 LED Module Outdoor SMD 160x160mm LED Board
Outdoor P5mm SMD LED Display Module Size is 160mmx160mm With32x32 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
P5 LED Panel P5 LED Module Outdoor SMD 160x160mm LED Board Main Specifications:
| Items | Parameter |
|---|---|
| Product Model | P5mm outdoor LED Module |
| Module size | 160x160mm |
| resolution ratio | 32*32dots |
| Pixel pitch | 5mm |
| Pixel density | 40000dots/sqm |
| Pixel configuration | SMD 3in1 |
| Driving method | Constant Current Driving,1/8scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD2525 |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1960HZ |
| Brightness in White Color (cd/m2): | 4500-5000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤450W/m2 (MAX 850) |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 5m-50m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
High Quality LEDs:
High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72 Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
