P4 LED Display Screen For Advertising Outdoor 640X640mm Event Rental LED Panel

Original price was: $560.00.Current price is: $150.00.

P4 640X640mm Outdoor Event Rental LED Panel, 62,500pixel/sqm, 6500cd/sqm brightness, outdoor HD rental LED display. High display performance competitive price.

or
SKU: P4-Outdoor-10S-SMD2525-80x40-L640xH640 Categories:

Share:

P4 LED Display Screen For Advertising Outdoor 640X640mm Event Rental LED Panel

Notice before order:

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P4 640X640mm Outdoor Event Rental LED Panel Features:

1) Slim cabinet, only 80mm thick.

2) Light weight, only 14.5KG per pcs of 640x640mm outdoor cabinet.

3) Non-gaps between cabinets, due to accurate-made die-cast aluminum cabinet.

4) Fast lock design, good for rental hanging use.

5) IP65 for both front side and IP54 for rear side.

P4 640X640mm Outdoor Event Rental LED Panel Applications:

Outdoor rental LED display

Outdoor rental led display screen

P4 LED Display Screen For Advertising Outdoor 640X640mm Event Rental LED Panel Parameters:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD2525 330-500mcd 120° 620-625nm 25℃,15mA
Green 550-900mcd 120° 514-535nm 25℃,8mA
Blue 80-140mcd 120° 460-475nm 25℃,5mA
Module Parameter
Pixel Pitch 4mm
Pixel Configuration SMD2525
Density 62,500 pixels/㎡
Module Resolution 80pixel(L) * 40pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 25mm(D)
Driving Mode Constant current, 1/10 duty
Module Mask Pure black mask—high contrast screen
LED Cabinet
Module Quantity in a Cabinet 2(L) * 4(H)
Cabinet Dimension 640(L)* 640(H)* 90(D)mm
Cabinet Resolution 160(L) * 160(H)
Cabinet Material Die-Cast Aluminum
Cabinet Weight ≈12.5KG
Electricity Parameter
Optical Ratings
Brightness ≥5,500 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥4m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz  Switchable
Max. Power Consumption 909 W/㎡
Avg. Power Consumption 303 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65(front), IP54(rear)
Out-of-Control Pixel Rate ≤0.01%

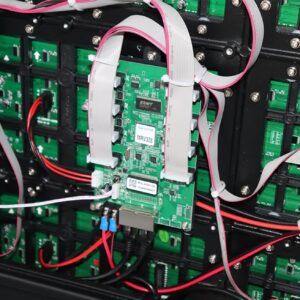

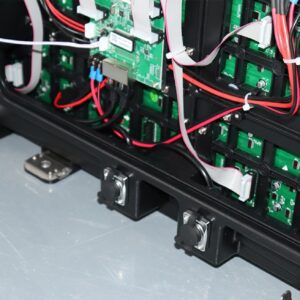

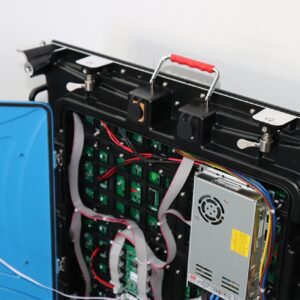

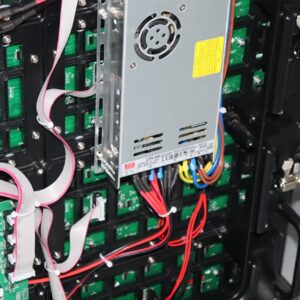

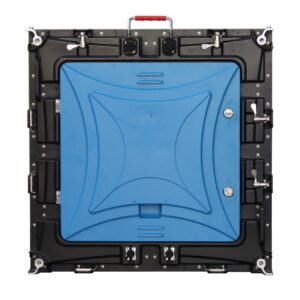

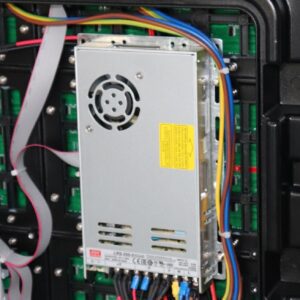

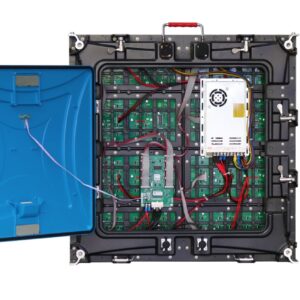

More Pictures of P4 640X640mm Outdoor Event Rental LED Panel:

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen

Die-Cast Rental 640x640mm LED Video Screen
