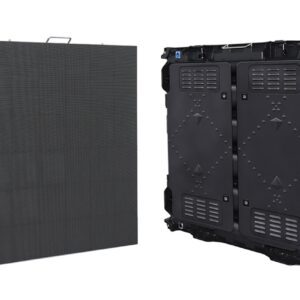

P3.33 Outdoor LED Display Billboard 960×960 Die-cast Fixed installation LED Panel Wall
Notice before order:

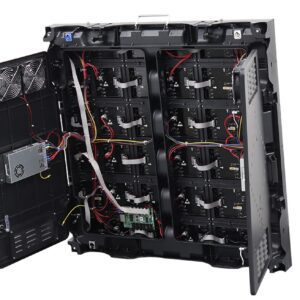

1) Parts included : High-quality steel cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P3.33 Outdoor LED Display Billboard 960×960 Die-cast Fixed installation LED Panel Wall Parameter:
Item | Technical Parameters |
Nationstar Full black Gold Wire SMD LED Lamp Parameters | |
Item Name | LED Type |
Red LED | SMD 1921 / SMD 1415 |
Green LED | SMD 1921 / SMD 1415 |
Blue LED | SMD 1921 / SMD 1415 |
LEEMAN LED Display Module Specification | |
Pixel Pitch | LeemanLED-P3.33mm |
Pixels Density | 90,000 pixels/m2 |
LED Configuration | Nationstar SMD RGB 3in1 |
Package Mode | SMD1415 or SMD1921 |
Module Size | 320mmx160mm and 160mmx160mm and 200mmx200mm |
Module Resolution | 96 x 48 pixels and 48 x 48 pixels and 60 x 60 pixels |
Module Pixles | 4608 pixels and 2304 pixels and 3600 pixels |
Max Power Consumpion | 50W and 40W and 45W |
Module Thickness | 25mm |
PCB Board | 4 Layer PCB Board With 1.6mm |
Driving IC | MBI5253 or ICN2163 |
Drive Type | Constant drive |
Driving Method Scan Mode | Dynamic 1/12 Duty constant current |
Port Interface Type | HUB75 |
Module Input Voltage | DC 5V |
Brightness of White Balance | ≥6500cd/㎡ |
Module Mask | Pure Black mask-high contrast screen |
LEEMAN LED Display Cabinet Specification | |
Cabinet Size (W X H X D) | 640mm x 640mm x 65mm or 960mm x 960mm x 75mm |
Cabinet Resolution (dot) | 192 x 192 pixels |
Module Quanity (pcs) | 8pcs |
Cabinet Pixels | 36864 pixels |
Pixel Density | 90,000 pixels/m2 |
Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
Cabinet Weight | 6.5kg per cabinet |
Packaging | Fly case |
Whole LEEMAN LED Display Screen Specification | |
Screen Brightness | ≥6500cd/m2 |
Driving Method | Constant current |
Best Viewing Distance | 3m – 80m |
Max. Power Consumption | 800W/m2 |
Average Power Consumption | 400W/m2 |
Gray Level | 8bits input, 4096 levels(212) |
Display Color | 256M |
Frame Frequency | ≥60Hz |
Refresh Frequency | ≥3840Hz – 6420Hz |
Uninterrupted Working Hours | ≥72 hours |
Screen Life-span | ≥100,000 hours |
MTBF | ≥10,000 hours |
Discrete Blind Spot Rate | <1/10000 |
Continuous Blind Spot Rate | None |
Blind Spot Rate | <1/10000 |
Waterproof Level | IP65 |
Protective Scale | For outdoor and indoor use, waterproof |
Screen Plainness | <±1mm |
Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
Environment Temperature | Temperature:-20 Celsius~ 60 Celsius |
Humidity | Humidity:10%~90% RH |
Control Mode | Synchronous display with control PC by DVI |
Control System | Linsn LED, Novastar LED, Colorlight LED or as you required |
Display Content | HDMI ,DVI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
Interface | Standard Ethernet |
Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Power Supply Brand | G-energy, MeanWell, Chuanglian or as you required |
Certificate | CE, RoHS, FCC, UL, EMC |
