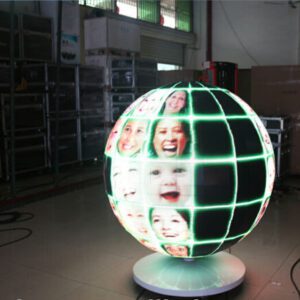

P2.5 Spherical LED Display Diameter 1 meter Sphere LED Screen
Application: Indoor Shopping mall, Bar, Club or Stage Use
LED Sphere Display Feature:
* Pitch 2.5mm
* Creative Design
* Easy to maintain
* Indoor Application
* Diameter=0.5meter (Option 1m/2m/3m/4m/5m/6m )

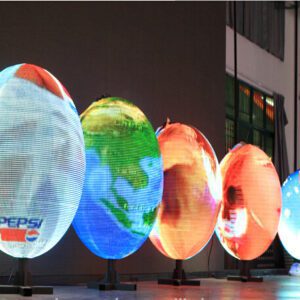

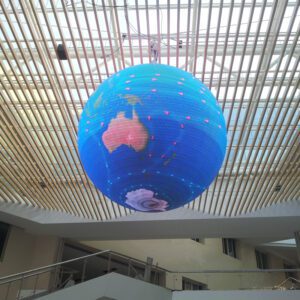

Sphere LED display is becoming very popular in bar, nightclub, show, stadium etc.
Different models of sphere LED displays are available in LEEMANDISPLAY.
Application: Indoor and outdoor designs available
Display color: full color
Pixel pitch: 10mm, 6mm, 4.8mm,4mm, 3mm,2.5mm,2mm, 1.8mm etc
Diameter: 1m, 1.5m, 2m, 3m. 4m, 5m, 6m, 8m, 10m etc
P2.5 Spherical LED Display Diameter 1meter
| Specification: | ||
| Parameter | Unit | Value |
| Pitch | mm | 2.5 |
| Brightness | nits | 1000 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ 70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ 70) |
| Net Weight | kg | 25 |
| Diameter | mm | 500 |
| Panel area | sq. m. | 0.785 |
| Operating temperature range | deg. C | -30 to 60 |
| Structure material | Steel | |
| Ingress protection (front/rear) | IP23 | |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Dot per sq. meter | 250000 | |
| LED per sq. meter | 250000 | |
| Recommended minimum viewing distance | m | 1.5 |
| Recommended best viewing distance | m | 2~100 |
| Colors | 281 trillion | |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 3000:01:00 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 600 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/pc | 500 |
| Input power (typical) | Watts/pc | 200 |
| Lifetime (50% brightness) | Hours | ≥100000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Controller | NOVA TB2 | |
| Data interconnection | UTP Cat 5 | |
| Mounting system | Hanging & Stand on ground | |
| Package | PLY wooden case | |
