P2.5 Outdoor LED Poster Video Display Multi-functional Advertising Smart Poster LED Display Screen

Original price was: $1,123.00.Current price is: $950.00.

P2.5 Outdoor Multi-functional Advertising Poster LED Screen can easily maintain the power supply, receiving card and cable, which is convenient, fast and simple.

or
SKU: P2.5-Outdoor-16S-SMD1415-128x64-L640xH1920 Categories:

Share:

P2.5 Outdoor LED Poster Video Display Multi-functional Advertising Smart Poster LED Display Screen

Notice before order:

1) Parts included : Waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2.5 Outdoor Multi-functional Advertising Poster LED Display Features:
Indoor multifunctional poster screen can be used. A single poster screen can be used alone, and multiple single poster screens can be quickly combined into a larger screen.
There are 4 rollers on the bottom of the multifunctional poster screen stand for easy movement.
The indoor multi-functional poster screen can easily maintain the power supply, receiving card, hub card and cable, and the operation is convenient, fast and simple.
The indoor multifunctional poster screen bracket can be easily adjusted from 80 degrees to 90 degrees, and the angle can be adjusted arbitrarily to meet various viewing angle requirements.

P2.5 Outdoor Multi-functional Advertising Poster LED Screen Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD1415 48mcd 120° 622nm 25℃,8mA
Green 155mcd 120° 526nm 25℃,5mA
Blue 20mcd 120° 470nm 25℃,3mA
Module Parameter
Pixel Pitch 2.5mm
Pixel Configuration SMD1415
Density 160,000pixels/㎡
Module Resolution 128pixel(L) *64pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 18mm(D)
Driving Mode Constant current, 1/16 duty
LED Cabinet
Module Quantity in a Cabinet 2(L) *4(H)
Cabinet Dimension 640(L)*640(H)* 90(D)mm
Cabinet Resolution 256(L) * 256(H)
Cabinet Material Die-cast aluminum
Cabinet Weight ≈12.5KG
Poster Screen
Cabinet Quantity of Whole the Screen 1(L) *3(H)
Display Size 640 (L)*1920(H)mm
Screen Dimension (Bracket included) 650(L)*640(W)* 2040(H)mm
Screen Resolution 256(L) * 768(H)
Screen Weight ≈47KG
Adjustable Angle of Bracket From 80° to 90°
Packaging
Packing Method Cabinets, structure and all parts are packed into one case
Packing Box Style Flight case with wheels
Packing Box Dimension 740(L)*590(W)*890(H)mm
Total Volume ≈0.39CBM
Gross Weight ≈80KG
Electricity Parameter
Optical Ratings
Brightness ≥5,000 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥2.5m
Gray Level 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption 648 W/㎡
Avg. Power Consumption 216 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 50m(WIFI); 100M (Ethernet cable); 20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~ 60 ºC
Storage Temperature -30~ 70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65(front), IP54(rear)
Out-of-Control Pixel Rate ≤0.01%

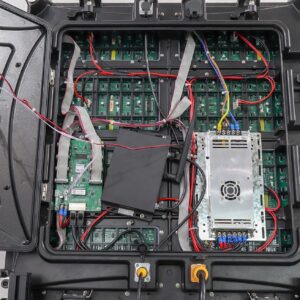

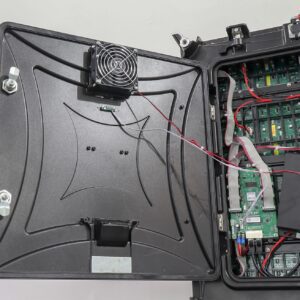

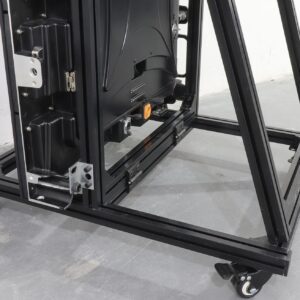

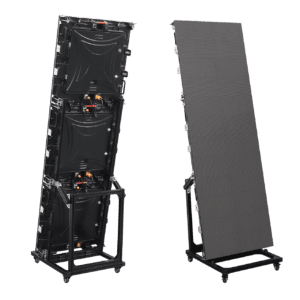

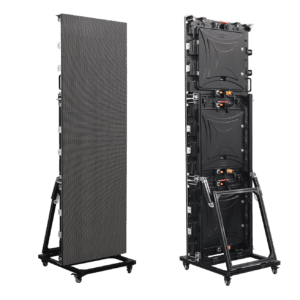

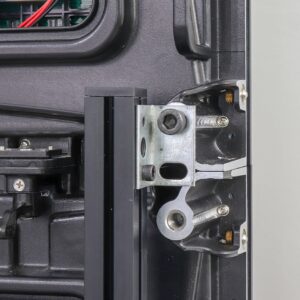

More Pictures of P2.5 Outdoor Multi-functional Advertising Poster LED Screen:

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen

Outdoor Multi-functional Advertising LED Poster Screen
