P2.5 Indoor Multi-functional LED Poster Display LED Video Screen Panel

Original price was: $722.00.Current price is: $600.00.

P2.5 Indoor Multi-functional Video Poster LED Screen Panel can easily maintain the power supply, receiving card and cable, which is convenient, fast and simple.

or
SKU: P2.5-32S-SMD2121-128x64-L640xH1920 Categories:

Share:

P2.5 Indoor Multi-functional LED Poster Display LED Video Screen Panel

Notice before order:

1) Parts included : High-quality cabinets, LED modules, power supplies, Novastar TB1-4G media player, NOVASTAR receiving card, power cables and signal cables. It does not include spare LED modules. If you need spare LED module, you should order them by this link:  P2.5 indoor 320x160mm LED module

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2.5 Indoor Multi-functional Video Poster LED Screen Panel Features:
Indoor multifunctional poster screen can be used. A single poster screen can be used alone, and multiple single poster screens can be quickly combined into a larger screen.

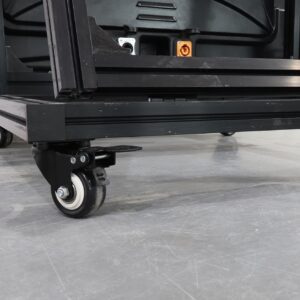

There are 4 rollers on the bottom of the multifunctional poster screen stand for easy movement.

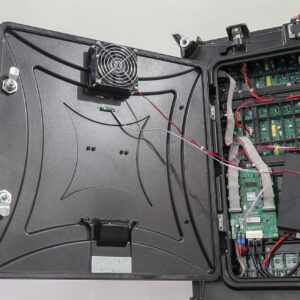

The indoor multi-functional poster screen can easily maintain the power supply, receiving card, hub card and cable, and the operation is convenient, fast and simple.

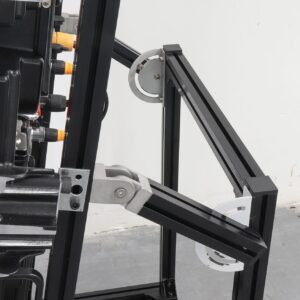

The indoor multifunctional poster screen bracket can be easily adjusted from 80 degrees to 90 degrees, and the angle can be adjusted arbitrarily to meet various viewing angle requirements.

P2.5 Outdoor Multi-functional Advertising Poster LED Screen can easily maintain the power supply Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD2121 80-104mcd 120° 618-623nm 25℃,15mA
Green 270-338mcd 120° 515-519nm 25℃,10mA
Blue 31-39mcd 120° 465-469nm 25℃,5mA
Module Parameter
Pixel Pitch 2.5mm
Pixel Configuration SMD2121
Density 160,000pixels/㎡
Module Resolution 128pixel(L) *64pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 18mm(D)
Driving Mode Constant current, 1/32 duty
Module Quantity in a Cabinet 2(L) *4(H)
Cabinet Dimension 640(L)*640(H)* 90(D)mm
Cabinet Resolution 256(L) * 256(H)
Cabinet Material Die-cast aluminum
Cabinet Weight ≈9KG
Poster Screen
Cabinet Quantity of Whole the Screen 1(L) *3(H)
Display Size 640 (L)*1920(H)mm
Screen Dimension (Bracket included) 650(L)*640(W)* 2040(H)mm
Screen Resolution 256(L) * 768(H)
Screen Weight ≈36.5KG
Adjustable Angle of Bracket From 80° to 90°
Packaging
Packing Method Cabinets, structure and all parts are packed into one case
Packing Box Style Flight case with wheels
Packing Box Dimension 740(L)*590(W)*890(H)mm
Total Volume ≈0.39CBM
Gross Weight ≈69.5KG
Electricity Parameter
Optical Ratings
Brightness ≥1,000 cd/㎡
Viewing Angle 160°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥2.5m
Gray Level 16 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption 457 W/㎡
Avg. Power Consumption 153 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥3840Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 50m(WIFI); 100M (Ethernet cable); 20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~ 60 ºC
Storage Temperature -30~ 70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%

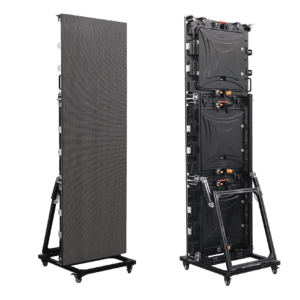

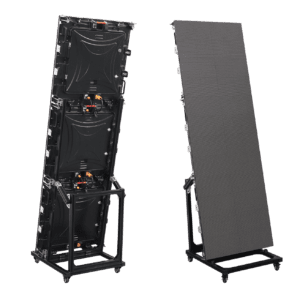

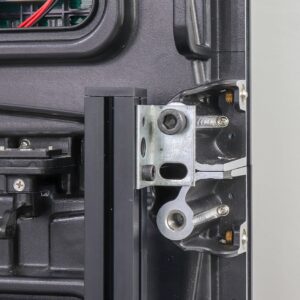

More Pictures of Indoor Multi-functional P2.5 Mirror Poster LED Display:

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen

indoor Multi-functional Advertising LED Poster Screen
