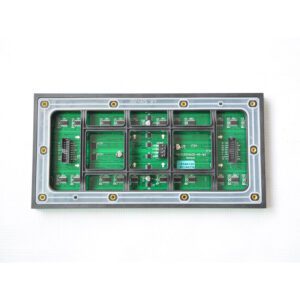

Outdoor P8 Full Color LED Display Module 256×128

Original price was: $7.00.Current price is: $6.00.

Pixel Pitch:8mm

LED Type: SMD3535

Model Pixel: 32*16Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

SKU: LEEMAN-P8-32X16-OS-4S Categories: Outdoor LED Display Module

Description

Shipping & delivery

Outdoor P8 Full Color LED Display Module 256×128

Outdoor P8mm SMD LED Display Module Size is 256mmx128mm With32x16 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

Outdoor P8 Full Color LED Display Module 256×128 Main Specifications:

Items	Parameter
Product Model	P8mm outdoor LED Module
Module size	256x128mm
resolution ratio	32*16dots
Pixel pitch	8mm
Pixel density	15625dots/sqm
Pixel configuration	SMD 3in1
Driving method	Constant Current Driving,1/4scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD3535
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1960HZ
Brightness in White Color (cd/m2):	5500-6000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤450W/m2 (MAX 850)
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	8m-80m
Input Voltage	110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
