128×256 Outdoor P2 GOB LED Module COB P2 Outdoor LED Display Panel

$41.37

128×256 Outdoor P2 GOB LED Module COB P2 Outdoor LED Display Panel

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: Outdoor-P2-led-display-panel-32S-SMD1515-128x64 Categories:

Share:

128×256 Outdoor P2 GOB LED Module COB P2 Outdoor LED Display Panel

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

128×256 Outdoor P2 GOB LED Module COB P2 Outdoor LED Display Panel

LED Lamp Specification

Color Package Intensity Viewing

Angle

Wavelength Testing

Conditions

Red

SMD1515

45-65mcd

120

°/120°

620-625nm

25℃,

10mA

Green

SMD1515

120-200mcd

120

°/120°

516-530nm

25℃,

5mA

Blue

SMD1515

20-40mcd

120

°/120°

465-475nm

25℃,5

mA

Module Parameter

Pixel Pitch 2mm
Pixel Configuration SMD1515
Density 250,000 pixels/㎡(real pixel)
Module Resolution 128pixel(L) * 64pixel(H)
Module Dimension 256mm(L) * 128mm(H) * 18mm(D)
Driving Mode Constant current, 1/32 duty

Electricity Parameter

Optical Ratings
Brightness ≥1,200 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥2m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or

automatically by sensor

Max. Power Consumption 40W
control system
Frame Frequency ≥60Hz
Refresh Frequency ≥1920Hz
Input Signal Composite Video, S-video,

DVI, HDMI, SDI, HD-SDI

Control Distance 100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode 800*600, 1024*768,

1280*1024, 1600*1200

Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by

module, cabinet by cabinet

Reliability
Working Temperature -20~ 60 ºC
Storage Temperature -30~ 70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade Front IP54 Back IP45
Out-of-Control Pixel Rate ≤0.01%

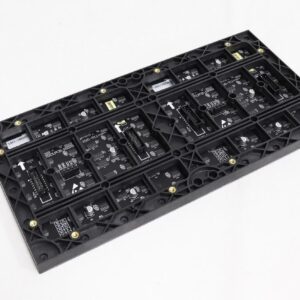

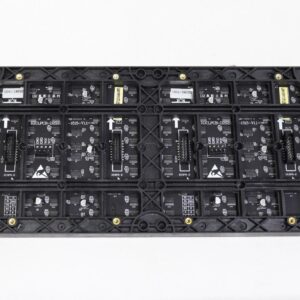

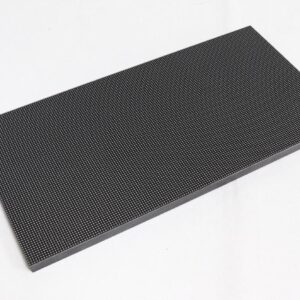

More Pictures of P2 LED Module 256X128

Indoor P2 HD LED Screen Module 256X128mm

Indoor P2 HD LED Screen Module 256X128mm

Indoor P2 HD LED Screen Module 256X128mm

Indoor P2 HD LED Screen Module 256X128mm
