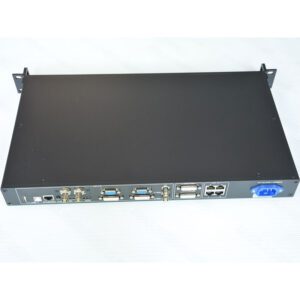

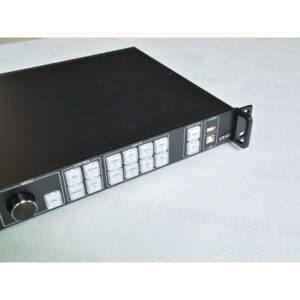

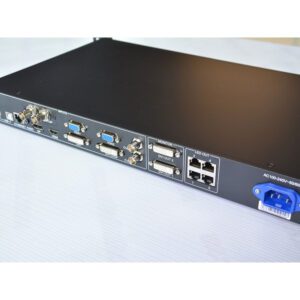

Novastar VX4U LED Video Processor NovaStar Software V-Can PC Async Mode User Manual Details

Novastar VX4U LED Video Processor is a professional LED display controller of NovaStar.

Besides having all the functions of an LED display controller, it also features powerful front end video processing.

It has the following features:

Inputs: CVBS×2, VGA× 2, DVI×1, HDMI×1 , DP×1 and USB×1.
Input resolution: 1920× 1200@60Hz.
Input images can be zoomed point-to-point according to the resolution of LED display.
Seamless quick switch and fade-in/out effects.
The location and size of PIP (Picture in Picture) are adjustable.
Adopts Nova G4 engine.
White balance calibration and color gamut mapping
High-bit video input: 10bit/8bit.
Output load capacity: 2.3 million pixels.
Support multiple controller montage for loading huge screen;
Nova’s new-generation pixel-by-pixel calibration technology.
LCD interface and clear button indicator lights.

Specification of complete machine
Electrical specifications	Power connector	AC100-240VAC 50/60Hz
Electrical specifications	Power consumption	25W
Operating environment	Operating temperature	-20℃ to 70℃
	Operating humidity	20%RH to 90%RH
	Storage humidity	10%RH to 95%RH
Physical specifications	Dimensions	482.6mm × 275mm × 45mm
	Package dimensions	2.55 kg
	Net weight	5.6 kg
Packing information	Carrying case	530mm × 140mm × 370mm
	Accessory box	402mm × 347mm × 65mm Accessories: 1 × power cord, 1 × Ethernet cable, 1 × DVI cable, 1 × HDMI cable, 1 × DP cable, 1 × VGA cable and 1 × USB cable
	Packing box	550mm × 400mm × 175mm
Certifications		CE、RoHS、FCC、UL/CUL、RCM、CB、KC、EAC
Noise Level (typical at 25°C/77°F)		40dB（A）
