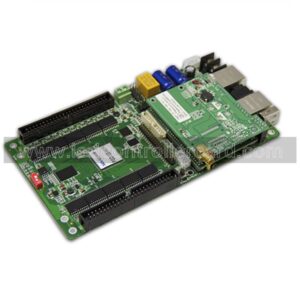

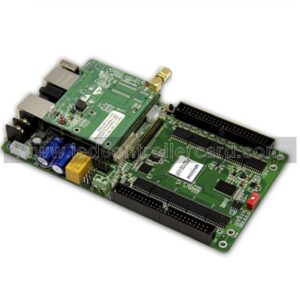

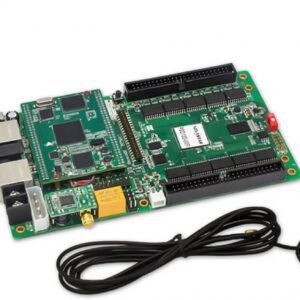

Novastar PSD100-Wifi Asynchronous LED Controller Card Wifi Data Transmission

Novastar PSD100-Wifi Asynchronous LED Controller Card Features:

1) Wireless communication with Wi-Fi module;
2) Support AP mode, Station mode and AP Station Mode.Support 10 clients in AP Mode;
3) Remote publish play-program;
4) Remote Monitoring the current play information;
5) Remote control power supply;
6) Play as per time segment or according to date, week and time;
7) Self-adapting window display;
8) Multiple clients synchronous display;
9) Support a variety of media formats, such as video, images, text, weather, clock, countdown, Word, Excel, TXT, etc;
10) Support emergency insert play, immediate notification;
11) Remote manage the playback log;
12) U disk export and Insert-and-Play;
13) Support remote upgrade of application software and hardware programs;
14) Flexible loading capacity: 512×1024, 960×600, 800×700, 1024×576, 1520×384, 2048×256,704×800, 1120×500, 904×640;
15) Full-scale chip support: can support a variety of chips;
16) Support full-color static to 32 scan, real pixel/virtual pixel;
17) Field frequency as 60Hz;
18) The gray level is settable,and support 16 bit 65536 level gray to the maximum;
19) Refresh frequency: scanning screen can achieve 3840Hz and static screen can achieve 6000Hz;
20) Support brightness correction and chromaticity correction;
21) Support the open-short test of MBI5036, MBI5034, MBI5039, DM13H;
22) Support all monitoring states of MON300 (monitoring working state, temperature, humidity, smoke,switching power supply voltage, fan speed and single lamp open short of each cabinet);
23) On-board temperature and voltage test;
24) Support (with the optical probe NS048C) automatic brightness adjustment；
25) Support secondary development；
26) Support multi-function card MFN300.
