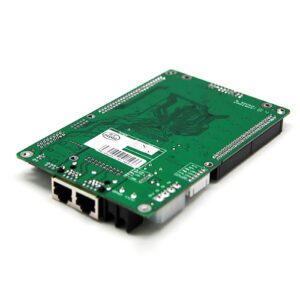

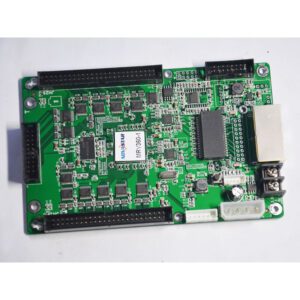

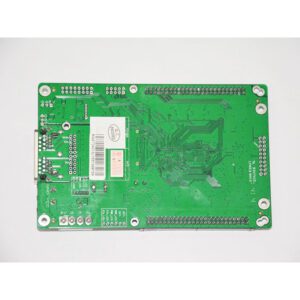

Novastar MRV360-1 LED Receiver Card Leeman LED Control Card Details
Novastar MRV360-1 LED Receiver Card max support 256*226 pixels.
And, MRV360-1 is the new receiver card from Nova, single card max support 256 x 226 pixels.
It has the follow up features:
- Monitoring Card Applicable ：Supported
- Single card outputs 24-group of RGB data; and 64-group of serial data;
- Configuration file readback;
- Support high gray scale, and high refresh rate;
- Pixel-by-pixel brightness and chromaticity calibration.
- Pre-store picture setting;
- Comply with EU RoHs, CE-EMC standard;
|
Specification |
MIN | TYP | MAX | UNIT |
| Rated voltage | 3.3 | 5.0 | 5.5 | V |
| Rated current | 0.33 | 0.50 | 0.55 | A |
| Working temperature | -20.0~70.0 | ℃ | ||
| Working humidity | 10.0~90.0 | % | ||
