Novastar A4S LED mini Receiving Card LeemanLEDscreen
$14.00 Original price was: $14.00.$13.85Current price is: $13.85.
- Resolution ：256 x 256 pixels
- Dual backup of display parameters.
- 24-group RGB Parallel output
- Temperature, power voltage and network cable communication status monitor
- Pixel-by-pixel brightness/chroma calibration.
SKU:
NOVA-A4S
Categories: Novastar LED Control Card
Share:

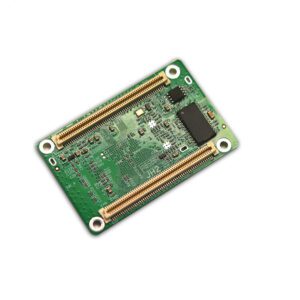

Novastar A4S LED mini Receiving Card LeemanLEDscreen Details
Novastar A4S LED mini Receiving Card max support 256*256 pixels.
A4S is the new receiver card from Nova, single card max support 256 x 256 pixels.
It has the follow up features:
1) 256×256 resolution
2) 24 RGB data out
3) MOM Interface
4) Pixel level color & brightness calibration
5) RCFG Backup & Read
6) Cabinet Mapping
| Maximum Loading Capacity | 256×256 pixels | |
| Electrical Parameters | Input voltage | DC 3.3 V–5.5 V |
| Rated current | 0.5 A | |
| Rated power consumption | 2.5 W | |
| Operating Environment | Temperature | -20°C–+70°C |
| Humidity | 10% RH–90% RH, non-condensing | |
| Storage Environment | Temperature | -25°C–+125°C |
| Packing Information | Packing specifications | Each card is shipped with an antistatic bag and anti-collision foam. Each box contains 40 cards. |
| Packing box dimensions | 378.0 mm × 190.0 mm × 120.0 mm | |
| Dimensions | 70.0 mm × 45.0 mm × 7.3 mm | |
| Net Weight | 17.3 g | |
| Certifications |
|
|
