Indoor P3.91 Rental LED Screen 500X500 LED Display 500x1000

Indoor P3.91 Rental LED Screen Panel 500X500 LED Display 500×1000

Notice before order:

1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Features of P3.91 Rental LED Screen 500×1000:

1) Hot Sale 500*500mm Die-cast aluminum Rental Cabinet. Slim and light weight.

2) Strong Fast Lock, More accurate and easy to handle, make it minimum gaps between cabinet.

3) Light weight, only 7KG for 500x500mm cabinet.

4) ±15° angle adjustable between cabinet, enable to make into inner arc or outter arc shape even rount shape use 12 cabinet.

5) Fast lock design, good rental hanging solution.

Applications of P3.91 Curved Rental LED Panel 500X500mm:

Indoor Slim Light Weight Rental LED Display Panel

Indoor Round/Arc/Cylinder/Column Event LED Display

Parameters of Indoor P3.91 Rental LED Screen Panel 500X500 LED Display 500×1000 :

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2121	70-100mcd		120°	620-625nm	25℃,20mA
Green	SMD2121	120-200mcd		120°	515-530nm	25℃,10mA
Blue	SMD2121	30-40mcd		120°	465-475nm	25℃,5mA
Module Parameter
Pixel Pitch			3.91mm
Pixel Configuration			SMD2121
Density			65,536pixels/㎡
Module Resolution			64pixel(L) *64pixel(H)
Module Dimension			250mm(L) * 250mm(H) * 18mm(D)
Driving Mode			Constant current, 1/16 duty
Module Mask			Pure black mask—high contrast screen
LED Cabinet
Module Quantity in a Cabinet			2(L) *2(H)
Cabinet Dimension			500（L）500（H） 80(D)mm
Cabinet Resolution			128(L) * 128(H)
Cabinet Material			Die-cast aluminum
Cabinet Weight			≈7KG
Electricity Parameter
Optical Ratings
Brightness			≥1,200 cd/㎡
Viewing Angle			120°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥4m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			720 W/㎡
Avg. Power Consumption			240W/㎡
Control System
Frame Frequency			≥60Hz
Screen Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable); 20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

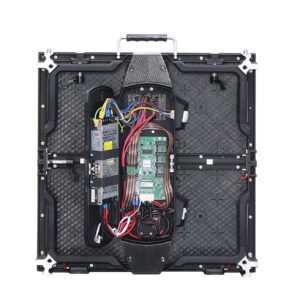

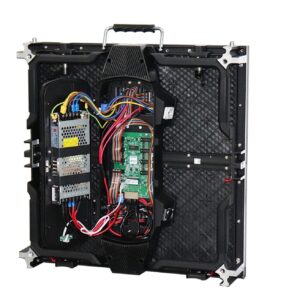

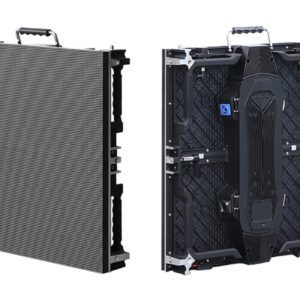

More Pictures of P3.91 Curved Rental LED Screen 500X500mm:
