DIP P10 LED Module 320X160 Outdoor DIP570 DIP346 1R1G1B

DIP P10 LED Module 320X160 Outdoor DIP346 1R1G1B LED Display Screen 960×960

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P10 Outdoor DIP346 1R1G1B LED Display Screen Module 320x160mm Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	DIP346	800-1500mcd		110°(H); 50°(V)	618-628nm	25℃,20mA
Green		1800-3000mcd			518-528nm	25℃,20mA
Blue		400-600mcd			465-475nm	25℃,20mA
Module Parameter
Pixel Pitch			10mm
Pixel Configuration			DIP346
Density			10,000 pixels/㎡
Module Resolution			32pixel(L) * 16pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 30mm(D)
Driving Mode			Constant current, 1/4 duty
Module Mask			Pure black mask—high contrast screen
Electricity Parameter
Optical Ratings
Brightness			≥7,500 cd/㎡
Viewing Angle			110°(Horizontal); 50°(Vertical)
Best Viewing Distance			≥10m
Gray Grade			14 bit
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			40 W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65
Out-of-Control Pixel Rate			≤0.01%

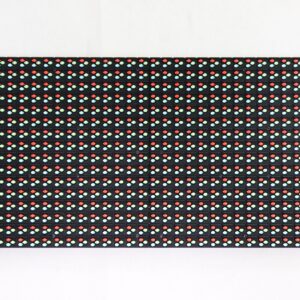

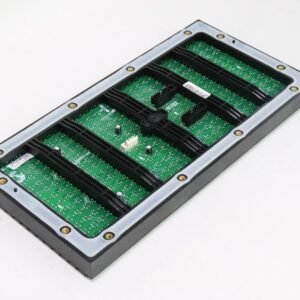

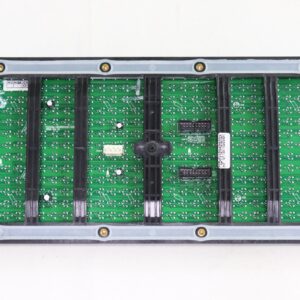

More Pictures of DIP P10 LED Module Outdoor DIP346 320x160mm LED Display Screen Module:
