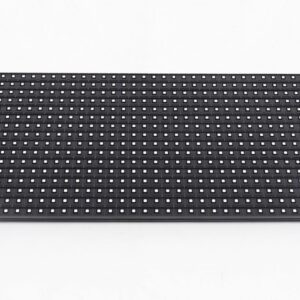

160×320 P10 LED Display Module Outdoor NationStar LED Chip SMD3535
Warm Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P10 Outdoor LED Display Module Features:
1) P10 SMD outdoor LED display is a good solution for outdoor fixed installation commercial LED screen.
2) The module size is 320x160mm, which is of our 320x160mm standard module series. It is convenient for clients to promote it. What is more,users can upgrade their old LED displays made of our 320x160mm standard modules easily.
3) Reasonable PCB design with good heat radiation and achieve long life span.
4) Using high quality SMD3535 LED, superior quality outdoor SMD LED display.
P10 LED Display Panel 160×320 P10 LED Display Parameters:
NationStar Gold Wire LED Lamp Specification |
||||||
Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
Red |
SMD3535 |
800-1100mcd |
120 |
620-625nm |
25℃,20mA |
|
Green |
1600-2250mcd |
120 |
515-530nm |
25℃,20mA |
||
Blue |
350-500mcd |
120 |
465-475nm |
25℃,20mA |
||
Module Parameter |
||||||
Pixel Pitch | 10mm | |||||
Pixel configuration | SMD3535 White | |||||
Density | 10,000 pixels/㎡(real pixel) | |||||
Module Resolution | 32pixel(L) * 16pixel(H) | |||||
Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | |||||
Driving Mode | Constant current, 1/4 duty | |||||
Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter |
||||||
Optical Ratings | ||||||
Brightness | ≥6,000 cd/㎡ | |||||
Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
Best Viewing Distance | ≥10m | |||||
Gray Grade | 16,384 levels for each color | |||||
Display Color | 4.39 Trillion Colors | |||||
Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
Max. Power Consumption | 28W | |||||
Control System | ||||||
Correction Scale Level | 16bits | |||||
Frame Frequency | ≥60Hz | |||||
Screen Refresh Frequency | ≥3,840Hz | |||||
Gamma Correction | -5.0~5.0 | |||||
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
Color Temperature | 5000—9300 adjustable | |||||
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
Reliability | ||||||
Working Temperature | –20~ 60 ºC | |||||
Stored Temperature | –30~ 70 ºC | |||||
Working Humidity | 10%~90% RH | |||||
Lifetime | 100,000 hours | |||||
MTBF | 5000 hours | |||||
Continuous Working Time | ≥72 hours | |||||
Protection Grade | IP65 | |||||
Out of Control Pixel Rate | ≤0.01% |

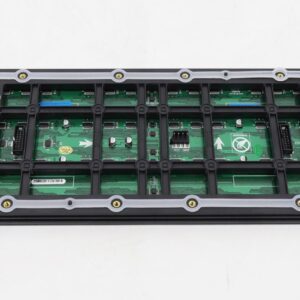

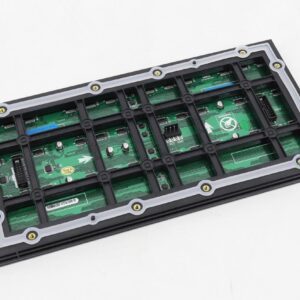

P10 SMD Outdoor LED Display Module 320×160 NationStar LED Chip 1/4 Scan hub75 Output For Advertising LED Video Screen:
