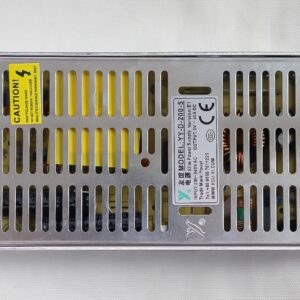

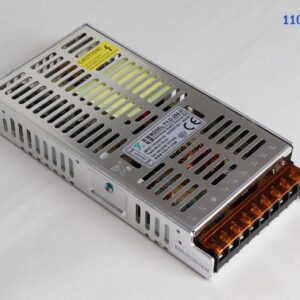

YOU-YI YY-D-200-5 5V40A 200W LED Module Power Supply

Original price was: $8.80.Current price is: $8.60.

The high voltage Mosfets that the power supply used are imported from Japan or Korea. And have high voltage pressure resistance and excellent switching performance.

or
SKU: YOU-YI-YY-D-200-5 Categories:

Share:

YOU-YI YY-D-200-5 5V40A 200W LED Module Power Supply Features:

1. Use MOS transistors instead of Schottky diodes, MOS low resistance state characteristics, can greatly improve efficiency, reduce losses and heat, to extend power supply life.
2. Provide overvoltage protection, overcurrent protection, short circuit protection, overload protection. When the protection mechanism is triggered, the power is automatically turned off, and after the fault is removed, the power supply is resumed.

You-yi YY-D-200-5 5V40A 200W LED Power Supply Parameter:

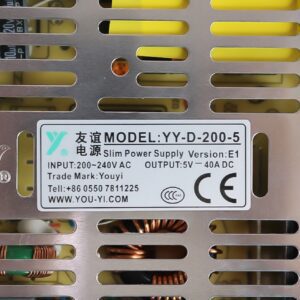

Model YY-D-200-5 V:G
Output Output Voltage 5V
Max Current 40A
Current Range 0~40A
Max Power 200W
Ripple and noise ≤100mV
Voltage adjustment range ±1%
Voltage tolerance ±1%
Linear adjustment rate ±0.5%
Load regulation ±2.0%
Start Time 50mS
Hold time 20mS
Input voltage range 100V~130V / 200V~240V
Frequency Range 47Hz~63Hz
Effectiveness 88%
Inrush current ≤40A
Leakage current ≤2.0mA
Protection Input undervoltage 150V~170V
Input overvoltage 270V~280V
Input overcurrent 4A
Output overvoltage 5.75V~7.5V(Self – recovery)
Output current limit 61A~70A
Over temperature 105℃±5℃
Cooling mode Fan forced cooling
Enviroment Operating temperature —30℃~+60℃
Working humidity 20~90%RH,No condensation
Storage temperature, humidity —40℃~+80℃,10~95%RH
Temperature Coefficient ±0.03%/℃(0~50℃)
Resistant to vibration 10-300MHz,1G,10Minute / period,
X.Y.Z axis for 60 minutes each.
Safity Safety Standard Accord to GB4943、UL60950、EN60950
EMC Standard Accord to GB9254、EN55022A
Pressure resistance I/P-O/P:3KVAC/3mA/1min
I/P-FG:1.5KVAC/3mA/1min
O/P-FG:0.5KVAC/3mA/1min
Isolation resistance I/P-O/P:100MΩmin/500VDC
Certified CQC/ CE/ CB/ ROHS/CCC
Other Dimensions 210*62*31mm
