XIXUN E10 Andriod Integrate 4G/GPS/WIFI LED Module Controller Card

XIXUN E10 Andriod Integrate 4G/GPS/WIFI Wireless Module Control Card Features:

1. Andorid OS 4.4,

2. Using AIPS cloud platform to realize publish programs, check status, power switch

and get display log remotely,

3. Support synchronizing led programs for multiple led screens,

4. Support various media types including video, image, text, weather, clock, countdown,

realtime message and html code,

5. Support timely notes and program task in schedule,

6. Support led module driver IC bands including MBI, SUM, ICN and MY,

7. Support cascading, sending and receiving cards keep the exactly same effects,

8. Support full color static and 32scan types, support half, one_third and quarter ways to

install led screens freely,

9. Match with powerful customized development kit with openable protocols,

10. Support working normally within 6 seconds with super capacitor to protect electric circuit.

XIXUN E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card Parameters configuration:

1. 3G frequency: support four frequencies GSM/GPRS/EDGE, working frequencies: GSM

850, EGSM900, DCS1800 and PCS1900.

3G dual frequencies UTMS/HSPA+, working frequencies: WCDMA BAND 1/8

(900MHz/2100Mhz), multimode EDGE/GSM/rel.8 HSPA+modem.

2. GPRS/EDGE HSPA+ data features

HSPA data downlink transmission maximum 21Mbps

HSPA data uplink transmission maximum 5.76M bps, EDGE data transmission maximum

236.8kbps, GPRS data transmission maximum 85.6kbps,

3. Wi-Fi/WAPI

Support SoftAP function, support 802.11b/g/n

Encryption: WFA, WPA/WPA2 Qos: WFA WMM, WMM PS radio frequency performance:

11b power rate 15dBm, EVM≤35%; 11g power rate 13dBm, EVM≤25dB; 11n power rate

13dBm, EVM≤28dB;

4. GPS/AGPS

GPS working frequency: 1575.42MHZ GPS carrier-to-noise ratio (CNO for short):

41db/Hz;

GPS dB: acquisition dB-148 dBm(cold), -156dBm (hot), tracking sensitivity:-162dBm,

GPS start up time: hot start<5s, warm start<15s, cold start<50s.

5. MP4 video format MPEG-4/ H.263, H.264, support storage TF card: Mircro-SD

maximum 32GB, support hot swap, MP3 audio format

XIXUN E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card Specifiation:

Type	Intelligent led controller
Mode	E10
Pixels	After cascade:540960(Full Color); Without cascade:320256
3G	Support
WIFI	Support
GPS	Support
AP	Support and allow other devices to access
Display type	Full color
Flash onboard	4GB EMMC and 4G storage， expand to 32G by TF
Gray level	65536
Led module scan types	Support random scan types within 32 scans
Audio	Support
microphone	Support
Camera	Support
Readback display content	Support
Display in schedule	Support
Video formats	support video format 3GP and MP4, please choose Divx, Xvid,AVC/H.264 encoding for MP4,
Animation formats	Support GIF,SWF etc.
Image formats	Support bmp,jpg,gif,wmf,ico etc.
Text formats	Support txt，rtf
Text mode	Single line, static and multi-line etc.
Clock	Types of analog clocks and digital clock
Timing	Timing and countdown
Software	WEB(www.m2mled.net)— AIPS platform
Working temperature	-30℃ ~ +70℃
Stock temperature	-40℃ ~ +90℃

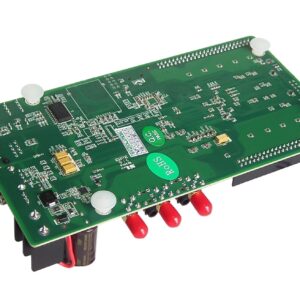

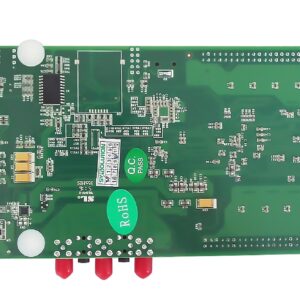

More Pictures of XIXUN E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card:
