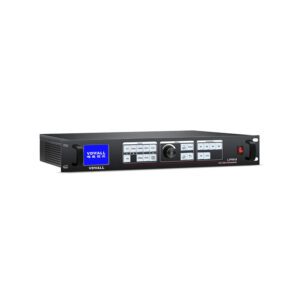

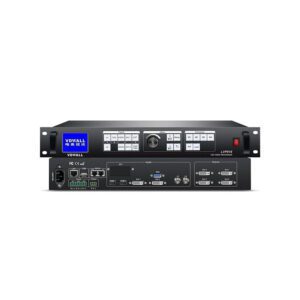

Vdwall LVP919 LED Controlller Video Processor

Vdwall LVP919 LED Controlller Video Processor

Inputs: 2×CVBS ,1×VGA（RGBHV）,2×DVI（VESA / CEA-861）,2×HDMI（VESA / CEA-861）,1×SDI（HD-SDI / 3G-SDI）(optional)
Outputs: 4 DVI DVI format(1024 x 768_60Hz/1280 x 1024_60Hz/1200 x 1600_60Hz/3600 x 600_60Hz/…..)
1.Faroudja® Real Color®Picture Processing, Faroudja® DCDI Cinema Processing，Faroudja® TureLife™Video Image Enhancement
2. 4*DVI output, Single output has the resolution up to 1920 x 1200_60Hz
3.Zoom in synchronously mosaic, single unit maximum mosaic level up to 7680 pixels or vertical 4800 pixels, or 3840×2400 pixels
4.Multiple analog and digital mixed signals input:2xCVBS、1xVGA、2xHDMI、2xDVI、1xExt
5. Seamless Switching, Fade In Fade Out Switching
6.PIP(Picture In Picture), Any PIP display; AIAO(Any In Any Out), any input crop and any output
7. Multiple output resolutions can be set, flexibly adapting to the size of the LED screen
8.Can preset multiple user-defined display modes, one button switching between modes
9.Control modes: panel button, software by RS232/USB/LAN, flexible and convenient
10. Add 4 channels of HDMI audio (only when DVI, HDMI interface is connected to HDMI signal) and 1 channel of SDI audio, up to 8 channels of audio synchronously switching
11. 24/7 Application, stable and reliable
12. Size: 482.6（L）x274（W）x66.6（H）mm, 4.2KG Power consumption:≤35W
