VDWall A6000 4K HD Multi-window Video Processor

Original price was: $1,463.00.Current price is: $1,450.00.

VDWall A6101 / A6111 / A6121 / A6211 / A6221 / A6122 / A6212 / A6222 4K HD Multi-window Video Processor Key Applications – Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing – Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc.

Optinal modules: 4K input module(2xHDMI2.0, 1xDP1.2), 2K input module(1xCVBS, 1xDVI, 1xSDI), 4-DVI output module(4xDVI).

Model Quantity of

4K input module

Quantity of

2K input module

Quantity of

4-DVI output module

Remark
A6101 1 0 1 1image,4xDVI splicing
A6111 1 1 1 2 windows,3 images, 4xDVI splicing
A6121 1 2 1 3 windows,5 images, 4xDVI splicing
A6211 2 1 1 3 windwos,4 images, 4xDVI splicing
A6221 2 2 1 4 windows,6 images, 4xDVI splicing
A6122 1 2 2 3 windows,5 images, 8xDVI splicing
A6212 2 1 2 3 windows,4 images, 8xDVI splicing
A6222 2 2 2 4 windows,6 images, 8xDVI splicing

If you are not sure which model fits your LED display, please contact us.

or
SKU: VDWall-A6000 Categories:

Share:

VDWall A6000 4K HD Multi-window Video Processor Features:



VDWall A6000 4K HD Multi-window Video Processor Inputs

– 12 input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High-Definition) input

– 6 UHD 4K2K_60Hz, maximum resolution up to 4096×, including HDMI2.0 × 4 DP1.2 × 2

– Seamless switching between different inputs, no black, splash, jitters



VDWall A6000 4K HD Multi-window Video Processor Multi-window Processing

– 4k -4 windows 6 images display, random zoom in/out and overlay display

– 4K seamless switching and Fade-in / Fade-out switching

– Any in any out(AIAO) 4K image crop

– Accurate image quality adjustment

– Image frame function, clearly identify different layer

– 16 preset display modes, seamless mode switching without black screen or blurred screen



VDWall A6000 4K HD Multi-window Video Processor Outputs

– Maximum 8 DVI outputs, synchronized joint split, driving capability up to 8K*2K

–  Any size and position of cropped image

– Accurate image quality adjustment realize uniform color of different screen batches

– 16 preset display modes, conveniently save/load

– Adaptive calculation aided splicing, auto calculate mosaic parameters according to the size and position of screen units

– User-defined output resolution, 8 Outputs reach to 17280 pixels in width or 12800 pixels in height. High efficient outputs utilization



VDWall A6000 4K HD Multi-window Video Processor Key Applications

– Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing

– Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc



Others

– Power on self test, convenient configuration data export and import

– Plug-in card design, customized input card and output card built in, convenient maintenance

– High stability and reliability, 7/24 operation



VDWall A6000 4K HD Multi-window Video Processor Parameter:

Features of Input Signals
Quantity/Type 4×HDMI 2.0(VESA/CEA-861)
2×DP1.2(VESA)
2×CVBS
2×DVI(VESA/CEA-861)compatible

with HDMI1.3a/VGA

2×SDI(SDI/HD-SDI/3G-SDI)
Composite Video Input SYS PAL/NTSC
Composite Video Amplitude Impedance 1V(p_p)/ 75Ω
VGA Format PC(VESA) ≤1920×

1200_60Hz

VGA Amplitude the impedance R、G、B = 0.7 V(p_p)/ 75Ω
DVI Format PC(VESA) ≤1920×

1200_60Hz

DMI Format(HDCP2.2) PC(VESA) ≤4096×

2160_60Hz

HDMI2.0

(CEA-861)

DP Format(HDCP2.2) DisplayPort1.2

(VESA)

≤4096×

2160_60Hz

SDI Format SMPTE259M-C 480i_60Hz
SMPTE 292M 576i_50Hz
SMPTE 274M/296M 720p、

1080i、

1080p.

SMPTE 424M/425M
Input Interface CVBS: BNC/ 75Ω
DVI:  24+1 DVI_D
HDMI:

Type A-HDMI format

DP:   DisplayPort1.2
SDI:  BNC/ 75Ω
Specification of Outputs
Quantity / Type 8×DVI
DVI Format 1200x1600_60Hz、

1440x1440_60Hz、

1600x1344_60Hz、

1920×1080_60Hz、

2160x960_60Hz

Output Interface DVI:24+1 DVI_D
Others
Control Ports RS232/USB/LAN
Voltage of Input 100-240VAC

50/60Hz

Max Power Consumption 75W
Ambient Temperature 0-45℃
Ambient

Humidity

15-85%
Product Size 482×465.5x89mm
Package Size 500x510x160mm
Net Weight 7.6KG

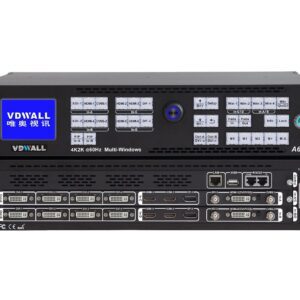

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

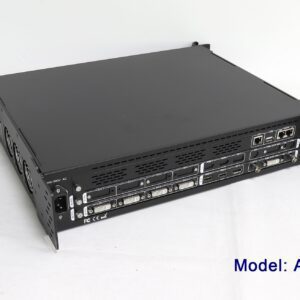

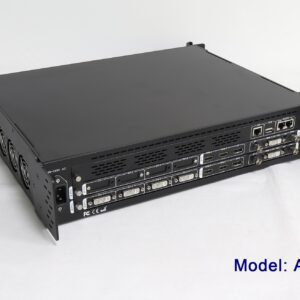

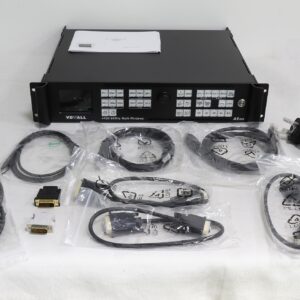

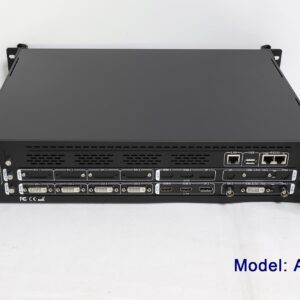

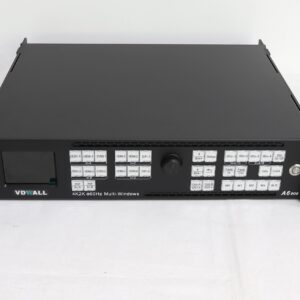

More Pictures of VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor
