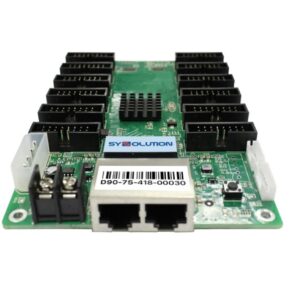

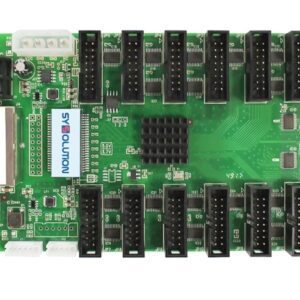

Sysolution D90-75 LED Video Receiving Card

Original price was: $17.98.Current price is: $17.00.

D90_75 Product Features: 12 hub75 ports Single block receiving card with pixel area：128×128 Working current:0.6A~1.0A Working temperature：-10℃ – 65℃ Extreme operating temperature:-20℃ – 75℃ Working humidity(%):0℃-95℃

SKU: Xixun-D90-75 Categories: Xixun LED Control Card

Description

Shipping & delivery

Sysolution D90-75 LED Video Receiving Card Features:

12 hub75 ports
Single block receiving card with pixel area：128×128
Working current:0.6A~1.0A
Working temperature：-10℃ – 65℃
Extreme operating temperature:-20℃ – 75℃
Working humidity(%):0℃-95℃

Sysolution D90-75 LED Video Receiving Card Parameter:

Type	Universal Receiving Card
Mode	D90_75
LED module	Full color
24 set of RGB output	Support
Single card serial output has 60 road output, can be extended to 120	Support
Output gray scale level	Up to 20 bit
Input voltage	+3.8V~+6V
Pixels	Maximum 96K pixels,each set data can load 8K pixels
High refresh frequency, high brightness,high garyscale for general IC	Support
Dual backup for the network calbe	Support
Intelligent module, store debugged data and module parameters	Support
Monitoring for the temperature, humidity, power supply voltage, fans of the screen box	Support
Extract at any position, and shift the display position of date, make any of irregular screen display easy to realize	Support
Variety of Driver ICs are supported, such as: PWM IC, Point by point Detecting IC and Conventional IC	Support
Any scan type of 1-1/32, and 595 or other serial decode scan	Support
Confirms	RoHs and CE-EMC standards
