Platinum P5 Outdoor 3D LED Screen 960x960 Waterproof IP68

Platinum IP68 P5 Outdoor 3D LED Screen 960×960 Energy Saving Dual Service LED Display 480×320

Leeman P5 Outdoor LED Display with Common Cathode

1. Energy-Saving with Low Power Consumption
2. Ultra-Light and Thinness;
3. Simple Structure, Hard Link with Wireless;
4. High Protection Level, Security and Stability;
5. Easy to Realize Front and Rear Maintenance;
6. Great Heat-Dissipation, Strong Environmental Adaptability;

Platinum Pro Series Outdoor Fixed LED Display Screen Solution
Dimension:960*900*80mm
Pixel Pitch Outdoor: 4mm, 5mm, 5.7mm, 6.67mm, 8mm, 10mm
Applications: DOOH Market, Billboard Advertisement, Road Sign, Stadiums, etc.

Key Features:
● 16:9 Golden ratio
● SMD outdoor 10,000 nits
● Front and Back maintenance
● Fanless cooling system
● Cable free back side

Platinum S Series Outdoor Fixed Narrow Pixel LED Display Screen Solution
Dimension: 500*1000*80mm
Pixel Pitch Outdoor: 2.604mm, 2.976mm, 3.91mm, 4.81mm
Applications: Window Screen, Digital Signage System, Bus Station, Arena Display, Business Advertising Signs, Airport, etc.

Key Features:
● Reach 7000nits high brightness
● Die-casting aluminum cabinet
● Total front & rear service
● Fine pitch outdoor fixed installation
● IP66 and 5VB protection level

Platinum IP68 P5 Outdoor 3D LED Screen 960×960 Energy Saving Dual Service LED Display 480×320

Leeman Front Maintenance Front Service Waterproof IP68 Outdoor LED Display 960×960 Specification
Model name	LEEMAN P4	LEEMAN P5	LEEMAN P6.67	LEEMAN P8	LEEMAN P10
Pixel Pitch (mm)	4	5	6.67	8	10
Pixel Density (dot/m2)	62500	40000	22478	15625	10000
Gold Wire LED Chip	NationStar	NationStar	NationStar	NationStar	NationStar
LED sealing Type	SMD1921	SMD2525	SMD2727	SMD3535	SMD3535
Module Size (mm * mm)	480*320	480*320	480*320	480*320	480*320
Module Resolution (PX* PX)	120*80	96*64	72*48	60*40	48*32
Brightness (cd/m2)	6500	7000	7500	8000	8500
Grey Scale（bit）	≥16	≥16	≥16	≥16	≥16
Driving IC	ICN2153	ICN2153	ICN2153	ICN2153	ICN2153
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Maximum Cabinet Power Consumption (W)	500	500	500	500	500
Average Cabinet Power Consumption (W)	150	150	150	150	150
Cabinet Size (mm * mm)	960*960	960*960	960*960	960*960	960*960
Cabinet Weight (Kg)	25KG	25KG	25KG	25KG	25KG
Cabinet Thickness(mm)	75	75	75	75	75
Horizontal Viewing Angle (Deg)	160
Vertical Viewing Angle (Deg)	140
Input Voltage (V)	110-220V/200-240V
Working Temperature (℃)	-20~ 40
Working humidity（RH）	10%~90%
Storage temperature range	-40~ 80
Operation humidity (RH):	10%~90%
Waterproof Level	IP68
working life	10,0000H
Working Environment:	Outdoor and Indoor
Installtion Method	Rental and Fixed Installation

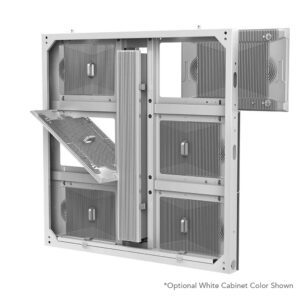

Maintenance method	Dual Service, Front Maintenance and Back service
Warranty time	5 years warranty time and free lifetime technical support
Certification	UL CE ETL ROHS EMC FCC ISO, IECEE, CB
