P7.62 Indoor SMD3528 LED Screen Module 32x32dot 244x244

P7.62 Indoor SMD3528 LED Screen Module 32x32dot 244x244mm 1/16 Scan

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P7.62 Indoor LED Screen Module Features:

1)New plastic cover with new mold, smaller module gaps and better screen flatness.

2)Big viewing angle, not less than 120 degrees on horizontal side and vertical side.

3)Perfect LED chip sorting technology ensures there is no color difference and brightness difference on the LED screen.

4)Reasonable PCB layout offers good heat dissipation capacity.

5)High resolution and high brightness make excellent display effect.

P7.62 Indoor 1/16 Scan SMD3528 32x32dot 244x244mm LED Screen Module Specification:

LED Lamp Specification

Color	Package	Intensity		Viewing angle	Wavelength	Testing condition
Red	SMD3528	300mcd		110 ºC	622nm	25℃,20mA
Green		600mcd		110 ºC	523nm	25℃,12mA
Blue		140mcd		110 ºC	470nm	25℃,12mA

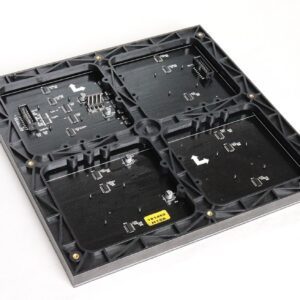

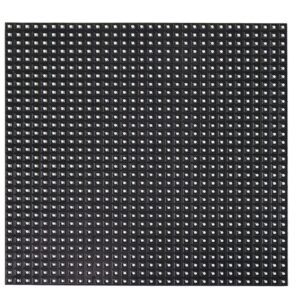

Module Photo

Module Parameter
Pixel Pitch			7.62mm
Pixel configuration			SMD3528
Density			17,222 pixels/㎡(real pixel)
Module Resolution			32pixel(L) * 32pixel(H)
Module Dimension			244mm(L) 244mm(H) 12mm(D)
Driving Mode			Constant current, 1/16 duty
Module Mask			Pure black mask—high contrast screen
Electricity Parameter
Optical Ratings
Brightness			≤1200 cd/㎡
Viewing Angle			160°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥7.6m
Gray Grade			8,192levels for each color
Display Color			549.7 Billion Color
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			16W
Control System
Correction Scale Level			16bits
Frame Frequency			≥60Hz
Screen Refresh Frequency			≥1920Hz
Gamma Correction			-5.0～5.0
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable); 20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Stored Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Working Time			≥72 hours
Protection Grade			IP31
Out of Control Pixel Rate			≤0.01%

More Pictures of P7.62 Indoor 1/16 Scan SMD3528 32x32dot 244x244mm LED Screen Module
