P6 LED Module Price 192x192 SMD3535 P6 Outdoor Wall Screens

P6 LED Module Price 192×192 with NationStar LED Chip P6 Outdoor Wall Screens

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P6 Outdoor SMD2525 192x192mm LED Display Screen Module Features:

1) Small pixel pitch 6mm for SMD outdoor LED screen, good solution for outdoor rental LED screen and outdoor fixed installation LED display.
2) 6mm is one of the pixel pitches of usual Outdoor LED screens. Therefore, it is a very good solution for rental LED screen for both outdoor and indoor use.
3) SMD3535 LED, top quality and high reliability.
4) Reasonable PCB design with good heat radiation and achieve long life span.

Outdoor P6 LED Module Price 192×192 with NationStar LED Chip LED Display Technical Specification:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2525	500-650mcd		120°	620-625nm	25℃,20mA
Green		1100-1500mcd		120°	514-535nm	25℃,20mA
Blue		200-400mcd		120°	460-475nm	25℃,20mA
Module Parameter
Pixel Pitch			6mm
Pixel Configuration			SMD2525
Density			27,778 pixels/㎡
Module Resolution			32pixel(L) * 32pixel(H)
Module Dimension			192mm(L) * 192mm(H) * 25mm(D)
Driving Mode			Constant current, 1/8 duty
Module Mask			Pure black mask—high contrast screen
Electricity Parameter
Optical Ratings
Brightness			≥6500 cd/㎡
Viewing Angle			120°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥6m
Gray Grade			14 bit
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			30W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～ 60 ºC
Storage Temperature			-30～ 70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65
Out-of-Control Pixel Rate			≤0.01%

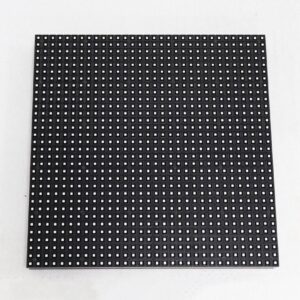

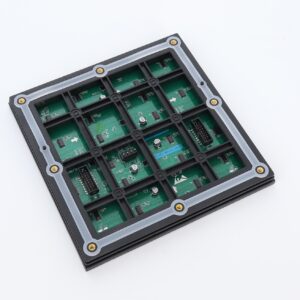

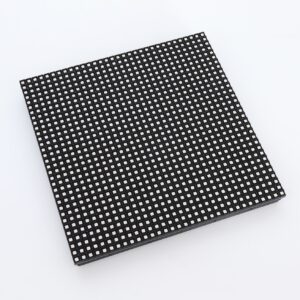

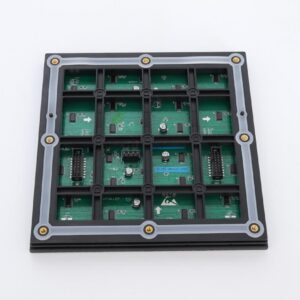

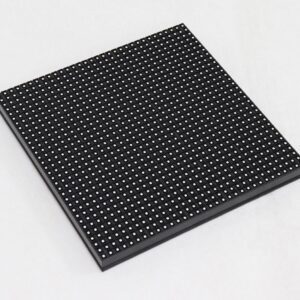

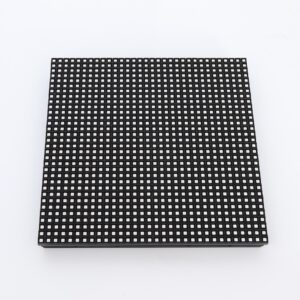

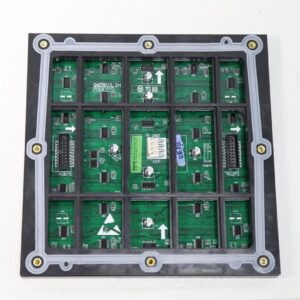

More Pictures of P6 Outdoor SMD2727 192x192mm LED Screen Module
