P5 LED Screen Outdoor LED Module 320x160

P5 LED Screen Outdoor LED Module 320×160

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Outdoor P5 SMD2525 1/8Scan 64x32dot 320x160mm LED Screen Module Features:

1) Reasonable PCB design, low heat disspation, reliable and steady.

2) New developed mold for the plastic covers, hence, smaller module gaps and better screen flatness.

3) Kinglight SMD2525, top quality outdoor SMD LED.

4) LED chip is sorted within 2.5nm wave length and 10% color difference. Narrow wave length range

and small color difference make perfect color uniformity and brightness conformity.

5) Exact control technology of brightness ratio of red, green and blue basic colors makes perfect white

balance performance.

6) Famous constant current IC, ensuring the consistency and stability of the whole screen.

Outdoor P5 SMD LED Screen Module 320x160mm Parameters:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD2525	450-600mcd		120°	620-625nm	25℃,20mA
Green	SMD2525	1000-1400mcd		120°	516-530nm	25℃,20mA
Blue	SMD2525	200-400mcd		120°	465-475nm	25℃,20mA
Module Parameter
Pixel Pitch			5mm
Pixel Configuration			SMD2525
Density			40,000 pixels/㎡
Module Resolution			64pixel(L) * 32pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 25mm(D)
Driving Mode			Constant current, 1/8 duty
Module Mask			Pure black mask—high contrast screen
Electricity Parameter
Optical Ratings
Brightness			≥6000 cd/㎡
Viewing Angle			120°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥5m
Gray Grade			14 bit
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			42 W
control system
Frame Frequency			≥60Hz
Refresh Frequency			≥1920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable); 20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65
Out-of-Control Pixel Rate			≤0.01%

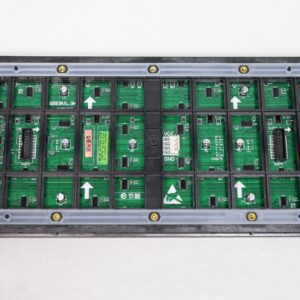

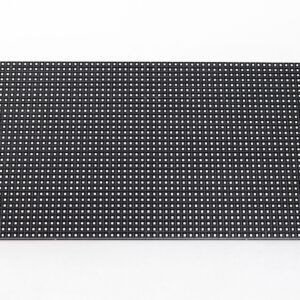

More Pictures of Outdoor P5 320x160mm SMD LED Screen Module:
