P4 GOB SMD LED Screen Module 256×256 Indoor LED Display Module 1/32 Scan

$5.00

Lead Time: 15-21 Working Days

Pixel Pitch:4mm

LED Type: SMD2121

Module Size: 256*256 mm

Model Pixel: 64*64 Pixels

SKU: Leeman P4 LED Module 256x256 Categories: Indoor SMD LED Module

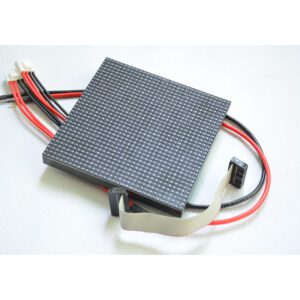

P4 LED Module 256×256 Indoor LED Display Module 1/32 Scan

Indoor P4mm SMD LED Display Module Size is 256mmx256mm With 64×64 dots.

We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
If you want to build led screen, please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

LED Module including the Data & Power Cables.
2 Years Warranty, Ship in 24 hours, Free Online Support.
LED Module Can Work With Linsn, Novastar, Colorlight, Xixun HUIDU LED ConTrol Card Etc.
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Items	Parameter
Product Model	P4mm Indoor LED Module
Module size	256mmx256mm
resolution ratio	64*64dots
Pixel pitch	4 mm

Pixel configuration	RGB 3in1
Driving method	Constant Current Driving,1/8 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD2121 (Black LED)
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1920HZ
Brightness in White Color (cd/m2):	800-1000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤300W/m2 (MAX 700)
Viewing Angle	140(Horizontal),140(Vertical)
Best Viewing Distance	4m-40m
Input Voltage	110V/60HZ-220V/50Hz Switchable
