P4.81 Outdoor Curved Rental LED Screen Panel Die-Casting 500X1000mm

Original price was: $560.00.Current price is: $250.00.

P4.81 Outdoor Curve Rental LED Screen Panel Die-Cast 500X1000mm, 43,264pixel/sqm, 6000cd/sqm brightness, outdoor HD rental LED display. Reformable which can be inner outward curve and other irregular shape.

or
SKU: P4.81-13S-SMD2525-52x52-L500xH1000 Categories:

Share:

P4.81 Outdoor Curved Rental LED Screen Panel Die-Casting 500X1000mm

Notice before order:

1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P4.81 Outdoor Curve Rental LED Screen Panel Die-Cast 500X1000mm Features:

1) Hot Sale 500*1000mm Die- cast aluminum Rental Cabinet. Slim and light weight.

2) Strong Fast Lock, More accurate and easy to handle, make it minimum gaps between cabinet.

3)  Light weight, only 18KG for 500x1000mm cabinet.

4) ±15° angle adjustable between cabinet, enable to make into inner arc or outter arc shape even rount shape use 12 cabinet.

5)  Fast lock design, good rental hanging solution.

P4.8 P3.9 P2.6 P2.9 P1.9 Outdoor Curve Rental LED Display Screen 500X500mm Applications:

Outdoor Rental LED Display panel

Outdoor Rental Arc/ Round/ Cylinder/ Column LED Display Panel

P4.8 Outdoor Curve Rental LED Panel 500X1000mm Parameters:

LED Lamp Specification

Color Package Intensity Viewing Angle Wavelength Testing Conditions

Red

SMD2525

450-600mcd

120°

620-625nm 25℃,20mA

Green

SMD2525

1000-1400mcd

120°

516-530nm 25℃,20mA

Blue

SMD2525

200-400mcd

120°

465-475nm 25℃,20mA

Module Parameter

Pixel Pitch 4.81mm
Pixel Configuration SMD2525
Density 43,264 pixels/㎡
Module Resolution 52pixel(L) *52pixel(H)
Module Dimension 250mm(L) * 250mm(H) * 25mm(D)
Driving Mode Constant current, 1/13 duty
Module Mask Pure black mask—high contrast screen

LED Cabinet

Module Quantity in a Cabinet 2(L) * 4(H)
Cabinet Dimension 500(L)* 1000(H)* 80(D)mm
Cabinet Resolution 104(L) * 208(H)
Cabinet Material Die-Cast Aluminum;
Cabinet Weight ≈18KG

Electricity Parameter

Optical Ratings
Brightness ≥6,000 cd/㎡
Viewing Angle 160°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥5m
Gray Grade 16 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz  Switchable
Max. Power Consumption 720 W/㎡
Avg. Power Consumption 240 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥3840Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65(front), IP54(rear)
Out-of-Control Pixel Rate ≤0.01%

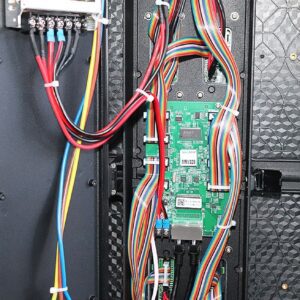

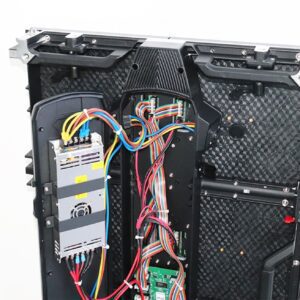

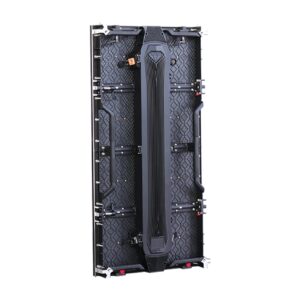

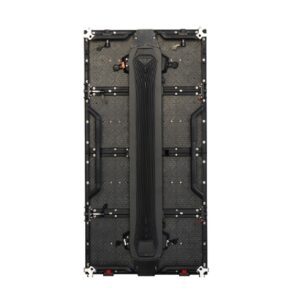

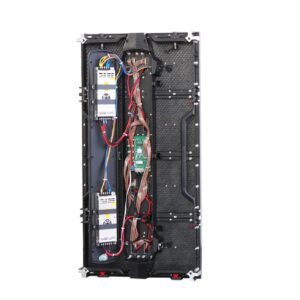

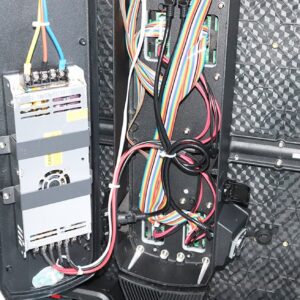

More Pictures of P4.81 Outdoor Curved Rental Curved LED Screen Panel Die-Cast 500X1000mm:

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet

500X1000 Rental LED Screen Cabinet
