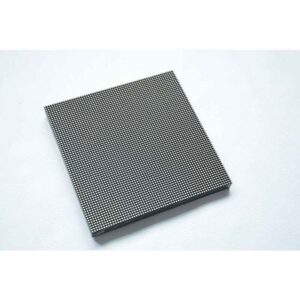

P3 Outdoor LED Module 64x64dots LED Panel 192×192
Outdoor P3mm SMD LED Display Module Size is 192mmx192mm With64x64dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
P3 Outdoor Full Color LED Module 64x64dots LED Panel 192×192 Main Specifications:
Items | Parameter |
---|---|
Product Model | P3mm outdoor LED Module |
Module size | 192x192mm |
resolution ratio | 64*64ots |
Pixel pitch | 3mm |
Pixel density | 110889dots/sqm |
Pixel configuration | SMD 3in1 |
Driving method | Constant Current Driving,1/16scan |
Working voltage | DC5V |
Module maximum power consumption | 55W/Pc |
Led Lamps | SMD1415 |
Electrical Parameters |
|
Frame rate | 60Hz/Second |
Refresh rate | ≥1920HZ |
Brightness in White Color (cd/m2): | 5000-5500 CD/m2 |
Contrast ratio | ≥4000:1 |
Life time | ≥100000 hours |
Operating humidity | 10%-90%RH |
Average power consumption | ≤450W/m2 (MAX 850) |
Viewing Angle | 120(Horizontal),120(Vertical) |
Best Viewing Distance | 3m-30m |
Input Voltage | 110V/60HZ-220V/50Hz Switchable |
High Quality LEDs:

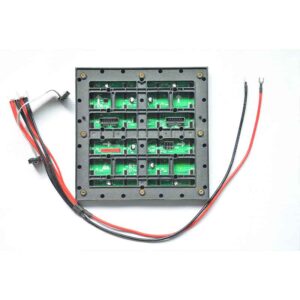

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72 Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
