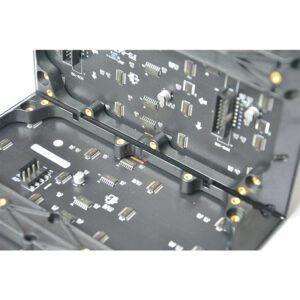

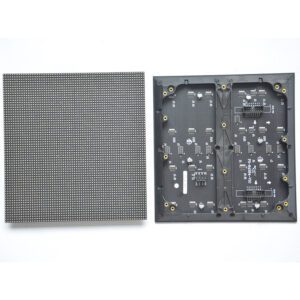

P3 Full Color LED Display Supplier Indoor Right Angle 192mmx192mm LED Module

Original price was: $23.50.Current price is: $23.00.

Pixel Pitch:3mm

LED Type: SMD2121

Module Size: 192*192 mm

Model Pixel: 64*64 Pixels

or
Categories:

Share:

P3 Full Color LED Display Supplier Indoor Right Angle 192mmx192mm LED Module

Indoor P3mm Right Angle LED Display Module Size is 192mmx192mm With 64×64 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun huidu LED Control Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

P3 Full Color LED Display Supplier Indoor Right Angle 192mmx192mm LED Module Main Specifications:

Resolution 64(H)×64(V)
Pitch 3mm
Density 111,111 pixels/㎡
LED Arrangement SMD2121
Driver Mode Dynamic 1/32 Duty constant current
Size 192mm×192mm
Mask Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness ≥1000cd/㎡
View Angle 140 degree ( horizontal)  140degree(vertical)
View Distance 3m-30m
Gray Scale 8bits input, correction with 16bits
Display Color 16.7M
Brightness Adjustment 100 levels
Power Supply
Operation Power AC100-240V 50-60HZ  Switch-able
Maxim Power Consumption 900 W/m2
Average Power Consumption 500 W/m2
Control System
Correction Scale Level 16bits
Frame Update Frequency 60Hz
Screen Refresh Frequency 1920Hz
Gamma Correction -5.0—5.0
Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance Ethernet cable 100m, optical fiber 5km
Support VGA Mode 800×600,1024×768,1280×1024,1600×1200
Color Temperature 5000-9300 adjustable
Brightness Correction dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp. -20-60 Celsius degree
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Continuous Working Time ≥48 hours
Protection Level IP54
Out of Control Pixel Rate 0.01%
