P3.84 Outdoor LED Display Screen 576×576 With LED Screen Module 288×288 Details
High brightness Outdoor P4.8 Full Color LED Display for Rental with die-casting cabinet size of 576x576mm
Product Features:
1. SMD led encapsulation confirm wide view angle, up to 140 degree for horizontal and vertical
2.With special craft finished ensure good waterproof IP65, anti-corrosion and rust-proof
3.High pixel density, high resolution,high definition

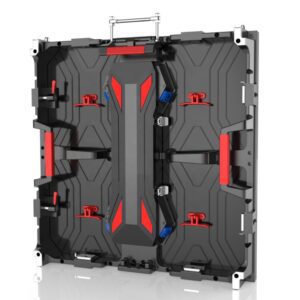

4. With Rental design strong configuration die-casting Aluminum Cabinet, easy and quick to assemble without tools in short time and long life time
5. Cabinet with no fan design and aluminum material confirm low power consumption, low noise created,
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network
7.Widely used for commercial display, stage background, mobile advertising. Traffic led sign, sports scoreboard etc.
P3.84 Outdoor LED Display Screen 576×576 With LED Screen Module 288×288
1: Standard Size Panel: 288*288mm
2: Standard Cabinet Size: 576*576mm
Outdoor Waterproof LED Display Screen Cabinet 576*576 series | ||||
ITEM | UNIT | Leeman-P3.0 | Leeman-P4.8 | Leeman-P6.0 |
Pixel Pitch | mm | 3 | 4.8 | 6 |
Pixel Matrix Per | Pixel/sqm | 111108 | 43264 | 27556 |
Module Pixel structure | N/A | SMD1515 | SMD1921 | SMD3535 |
Brightness | nits | 5000MCD | 5500MCD | 6000MCD |
Scan | N/A | 16 scanning | 8 scanning | 8 scanning |
Cabinet Resolution | Pixel | 192×192 | 120×120 | 96×96 |
Power Con. (Max / Avg) | W/sqm | 800/400 | 800/400 | 800/400 |
Module Dimension | mm | 192×192 | 192×192 | 192×192 |
Cabinet Dimension | mm | 576x576x90 | 576x576x90 | 576x576x90 |
Cabinet Weight | kg | 10kg | 10kg | 10kg |
Service Access | N/A | Rear | Rear | Rear |
View angle | ℃ | 160°/ 140° | 160°/ 140° | 160°/ 140° |
Refresh Rate | Hz | 1920/3840 | 1920/3840 | 1920/3840 |
Grey Scale (bit) | bit | 16 | 16 | 16 |
IP Rate | IP | IP65 | IP65 | IP65 |
Life span | hrs | 100000 hrs | 100000 hrs | 100000 hrs |
Working Temperature | ℃ | -30-60 ℃ | -30-60 ℃ | -30-60 ℃ |
Storage Temperature | ℃ | -20-60 ℃ | -20-60 ℃ | -20-60 ℃ |
Power Supply | V | AC100-240V | AC100-240V | AC100-240V |
Voltage frequency | Hz | 50-60Hz | 50-60Hz | 50-60Hz |
Color temperature | N/A | 3000-10000K | 3000-10000K | 3000-10000K |
