  • Outdoor P3.076 320x160mm LED Screen Display Module

P3.076 LED Display Module 320×160

Original price was: $29.58.Current price is: $18.99.

Pixel Pitch: 3.076mm

LED Type: SMD1415

Module Size: 320*160 mm

Model Pixel: 104*52 Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: Leeman-P3.076-outdoor-led-module-104X52 Categories: ,

Share:

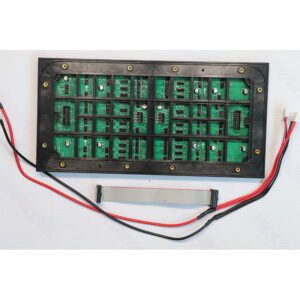

P3.076 LED Display Module 320×160 Outdoor LED Boards

Outdoor P3.076mm SMD LED Display Module Size is 320mmx160mm With 104×52 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors,even different config files.
  • If you want to build led screen,please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P3.076 LED Display Module 320×160 Outdoor P3.076 320x160mm LED Screen Display Module Specifications:

Items Parameter
Product Model P3.076mm outdoor fine pitch LED Module
Module size 320x160mm
resolution ratio 104*52dots
Pixel pitch 3.076 mm
Pixel density 105625dots/sqm
Pixel configuration SMD 3in1
Driving method Constant Current Driving,1/13 scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD1415

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥1920HZ
Brightness in White Color (cd/m2): 5000-5500 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤450W/m2 (MAX 850)
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 3m-30m
Input Voltage 110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.

72 Hours Aging

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
