P2 Indoor HD LED Display Panel 640x480 Front Service Screen

P2 Indoor HD LED Display Panel 640×480 Die-casting Magnetic Front Service

Notice before order:

1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2 Indoor 640×480 Die-cast Magnetic Front Service HD LED Display Panel Features:

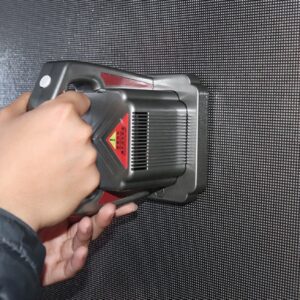

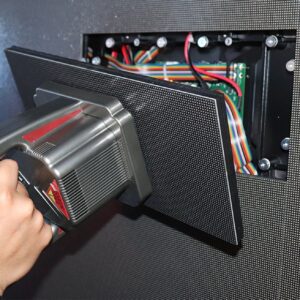

1. Maintain the LED module before using the magnet, it is very easy to install and remove

2. 640x480mm box, moderate size, easy to install, you can use vacuum suction tool to quickly remove the module

3. The frame can be made of aluminum alloy structure, which can be installed quickly

4. Wide viewing angle. Both horizontal and vertical viewing angles can reach 120 degrees.

5. Good color and brightness consistency.

6. Small gaps between modules and perfect screen flatness. The gap between the modules is less than 1 mm, and the screen flatness is less than 1 mm.

7. 1920HZ refresh rate, 14-bit color depth, 250,000 pixels/square meter

P2 Indoor 640×480 Die-cast Magnetic Front Service HD LED Display Panel application:

Indoor advertising LED display, indoor rental LED display

P2 Indoor HD LED Display Panel 640×480 Die-casting Magnetic Front Service parameters:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1515	38-50mcd		120°	618-623nm	25℃,8mA
Green		150-195mcd		120°	519-523nm	25℃,5mA
Blue		19-25mcd		120°	467-471nm	25℃,3mA
Module Parameter
Pixel Pitch			2mm
Pixel Configuration			SMD1515
Density			250,000 pixels/㎡
Module Resolution			160pixel(L) *80pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 18mm(D)
Driving Mode			Constant current, 1/40 duty
LED Cabinet
Module Quantity in a Cabinet			2(L) *3(H)
Cabinet Dimension			640（L）480（H） 90(D)mm
Cabinet Resolution			320 pixel(L) * 240 pixel(H)
Cabinet Material			Die-cast aluminum
Cabinet Weight			≈8KG
Electricity Parameter
Optical Ratings
Brightness			≥800 cd/㎡
Viewing Angle			120°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥2m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Operation Power			AC100-240V 50-60Hz Switchable
Max. Power Consumption			439 W/㎡
Avg. Power Consumption			150 W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m (Ethernet cable);
			20KM (optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

More Pictures of P2 Indoor 640×480 Die-cast Magnetic Front Service HD LED Display Panel:
