Outdoor P6.67 LED Panel 320...
$27.70 Original price was: $27.70.$25.50Current price is: $25.50.
P10 Outdoor LED Panel 320×...
$31.50 Original price was: $31.50.$23.50Current price is: $23.50.
Sale
P10 Outdoor SMD3535 LED Panel Module 320×320 SMD3535
$25.50 Original price was: $25.50.$23.00Current price is: $23.00.
P10 SMD Front Service Outdoor LED Module 320x320mm
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
Leeman-P10-Outdoor-2S-SMD3535-32x32
Categories: Front Maintenance LED Module 320x320
Share:
P10 Outdoor SMD3535 LED Panel Module 320×320 NationStar SMD3535 P10 SMD Outdoor Front Access LED Display Panel 320mmx320mm
Warm Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.
4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Features of P10 Waterproof SMD3535 320x320mm Outdoor Dual Maintenance LED Module:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

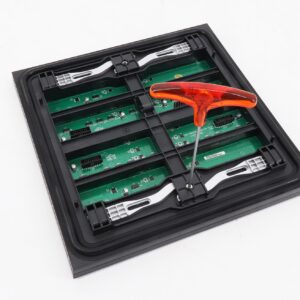

2) Easy maintenance, easy to take the modules with a 4mm hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 10mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.
Applicable situations of P10 NationStar SMD3535 Outdoor Front Maintenance LED Module:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance
PCB Versions of P10 SMD3535 Outdoor Dual Maintenance LED Screen Module:
| P10U4S-3535RGB32X432Y1302-SWH |
Parameters of P10mm Outdoor Dual Maintenance LED Display Module:
| Item | Specification |
| LED type | SMD3535 |
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| Module Size | 320x320mm |
| Module resolution | 32x32pixels |
| Density | 10,000 pixels/ ㎡ |
| Driving Mode | 1/2 duty |
| Brightness | ≥6500CD/ ㎡ |
| Viewing angle | H:160°, V:120° |
| Best viewing distance | 10m—100m |
| Working voltage | 5V |
| Power consumption | 59W |
| Module weight | 2.5KG |
| >Protection grade | Front: IP65 |
| Working Temperature | -20 ～60℃ |

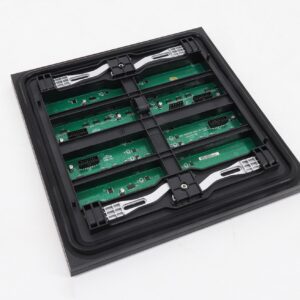

More Pictures of P10 Front Access LED Panel Module Outdoor SMD3535 320x320mm
