Outdoor P10 LED Display Module...
$9.20 Original price was: $9.20.$6.50Current price is: $6.50.
P10 Outdoor DIP570 RGB 3IN1 LE...
$18.46 Original price was: $18.46.$16.28Current price is: $16.28.
Sale
P10 Outdoor SMD LED Module 160×320 1/4Scan P10 LED Panel Controller
$7.62 Original price was: $7.62.$6.50Current price is: $6.50.
Pixel Pitch: 10mm
LED Type: SMD3535
Module Size: 320*160 mm
Model Pixel: 32*16 Pixels
Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO
SKU:
LEEMAN-P10-32X16-OS-4S
Categories: Outdoor LED Display Module 160x320, P10 LED Module 320x160
Share:

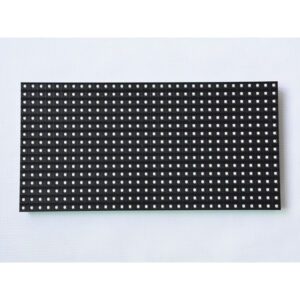

P10 Outdoor SMD LED Module 160×320 1/4Scan P10 LED Panel Controller
Outdoor P10mm SMD LED Display Module Size is 320mmx160mm With 32×16 dots. Our Standard Size 320x160mm P10mm LED display module can work together with Outdoor P4mm, P5mm, P6.67mm, P8mm LED screen Panel which have the same moduel size 320mmX320mm and 480mmx320mm and 500mmx250mm
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
320×160 waterproof P10 Outdoor SMD LED Module Specifications:
| Items | Parameter |
|---|---|
| Product Model | P10mm outdoor 1/4Scan LED Module |
| Module size | 320x160mm |
| resolution ratio | 32*16dots |
| Pixel pitch | 10 mm |
| Pixel density | 10000dots/sqm |
| Pixel configuration | SMD 3in1 |
| Driving method | Constant Current Driving,1/4 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD3535 |
Electrical Parameters | |
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1960HZ |
| Brightness in White Color (cd/m2): | 4500-5000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤450W/m2 (MAX 850) |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 10m-100m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
High Quality LEDs:
High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72 Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
