P10 Led Matrix Outdoor Waterproof Screen 320mmx160mm 1/8 Scan Indoor LED Module
$14.00 Original price was: $14.00.$13.00Current price is: $13.00.
Lead Time: 15-21 Working Days
Pixel Pitch: 10mm
LED Type: SMD3528
Module Size: 320*160 mm
Model Pixel: 32*16 Pixels
SKU:
LCC-P10-32X16-IS-8S
Categories: Indoor SMD LED Module
Share:
P10 Led Matrix Outdoor Waterproof Screen 320mmx160mm 1/8 Scan Indoor LED Module

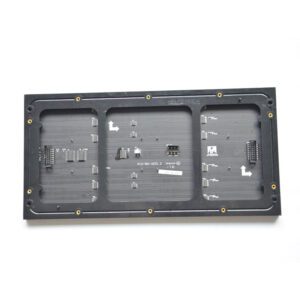

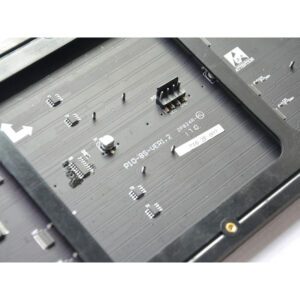

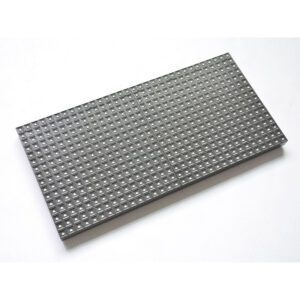

Indoor P10mm SMD LED Display Module Size is 320mmx160mm With 32×16 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
- If you want to build led screen, please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.
Remark:
- LED Module including the Data & Power Cables.
- 2 Years Warranty, Ship in 24 hours, Free Online Support.
- LED Module Can Work With Linsn, Novastar, Colorlight, Xixun HUIDU LED ConTrol Card Etc.
- 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.
P10 Led Matrix Outdoor Waterproof Screen 320mmx160mm 1/8 Scan Indoor LED Module Main Specifications:
| Items | Parameter |
|---|---|
| Product Model | P10mm Indoor LED Module |
| Module size | 320x160mm |
| resolution ratio | 32*16dots |
| Pixel pitch | 10 mm |
| Pixel configuration | RGB 3in1 |
| Driving method | Constant Current Driving,1/8 scan |
| Working voltage | DC5V |
| Module maximum power consumption | 55W/Pc |
| Led Lamps | SMD3528 |
Electrical Parameters |
|
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1920HZ |
| Brightness in White Color (cd/m2): | 800-1000 CD/m2 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤300W/m2 (MAX700) |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 10m-100m |
| Input Voltage | 110V/60HZ-220V/50Hz Switchable |
