P10 DIP LED Module 320×320 Outdoor 1R1G1B LED Panel Dual Maintenance
$91.50 Original price was: $91.50.$38.00Current price is: $38.00.
P10-OF4L-1R1G1B32x32 Brightness:≥8000CD/㎡ Power consumption:60W Viewing angle:H:110°,V:50° Product description: P10 DIP 1R1G1B, high brightness, high cost performance front service LED sign module
SKU:
Leeman P10-Outdoor-1R1G1B-led-module-32x32
Categories: Front Maintenance LED Module 320x320
Share:
P10 DIP LED Module 320×320 Outdoor 1R1G1B LED Panel Dual Maintenance P10 Outdoor DIP Front Service 320mmx320mm LED Dislay Module
Notice before order
1) Parts included: LED module, signal cable between modules, power cable between module and power supply.
2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.
3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Features of P10 1R1G1B 320×320 Outdoor Front Maintenance LED Module:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

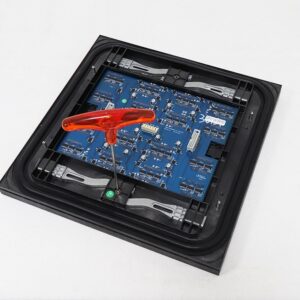

2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 10mm pixel pitch is suitable for small banner screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
Parameters of P10 Outdoor DIP LED Panel 320×320 Dual Maintenance LED Module :
| Item | Specification |
| LED type | DIP346 |
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| Module Size | 320x320mm |
| Module resolution | 32x32pixels |
| Density | 10,000 pixels/ ㎡ |
| Driving Mode | 1/4 duty |
| Brightness | ≥8000CD/ ㎡ |
| Viewing angle | H:120°, V:120° |
| Best viewing distance | 10m—100m |
| Working voltage | 5V |
| Power consumption | 60W |
| Module weight | 2.5 KG |
| >Protection grade | Front: IP65 |
| Working Temperature | -20 ～60℃ |
More Pictures of P10 Dual Maintenance LED Module Outdoor DIP RGB546 320x320mm
