P1.875 Indoor Soft Flexible LED Screen Module 240x120

P1.875 Indoor Soft Flexible LED Screen Module 240x120mm

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Indoor P1.875 Soft Flexible LED Panel Parameter:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1515	20mcd		120°/120°	620nm	25℃,5mA
Green		30mcd		120°/120°	530nm	25℃,2mA
Blue		5mcd		120°/120°	470nm	25℃,2mA
Module Parameter
Pixel Pitch			1.875mm
Pixel Configuration			SMD1515
Density			284,444 pixels/㎡
Module Resolution			128pixel(L) * 64pixel(H)
Module Dimension			240mm(L) 120mm(H) 6.5mm(D)
Driving Mode			Constant current, 1/32 duty
Electricity Parameter
Optical Ratings
Brightness			≥1,000 cd/㎡
Viewing Angle			140°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥1.8m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			15 W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥3840Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable);
			20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP31
Out-of-Control Pixel Rate			≤0.01%

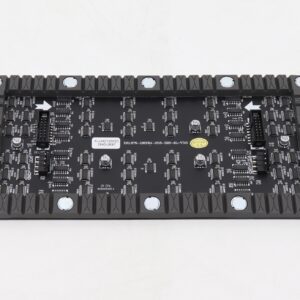

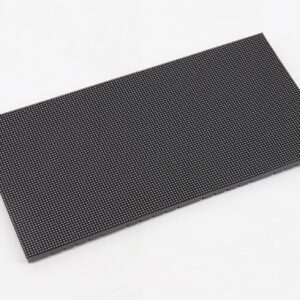

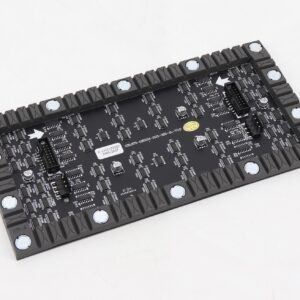

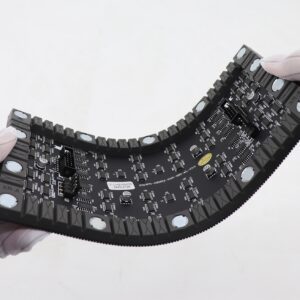

More Pictures of P1.875 Indoor Soft Flexible LED Module 240x120mm:

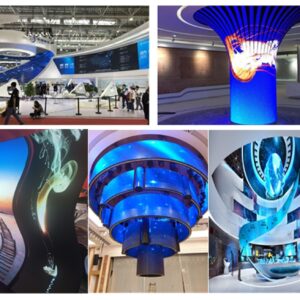

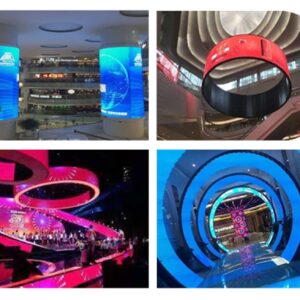

More Pictures of P1.875 Soft Flexible LED Module Installation&Application:
