P1.538 P1.56 LED Display Module 320x160mm 1/52 Scan LED Screen 200×150

Original price was: $78.50.Current price is: $45.00.

Pixel Pitch:1.538mm

LED Type: SMD1010

Module Size: 320*160 mm

Model Pixel: 208*104 Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

or
SKU: Leeman-P1.538-208X104-52S Categories: ,

Share:

P1.538 P1.56 LED Display Module 320x160mm 1/52 Scan LED Screen 200×150

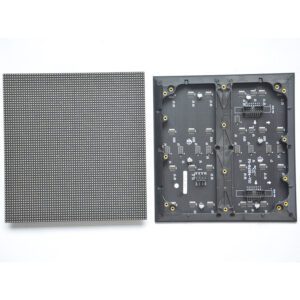

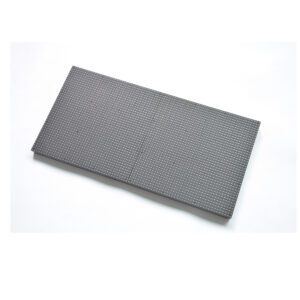

Indoor P1.538mm SMD LED Display Module Size is 320mmx160mm With 208×104 dots.

Attention:

  • We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
  • If you want to build led screen, please buy enough LED Modules and Spare Parts.
  • Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

  • LED Module including the Data & Power Cables.
  • 2 Years Warranty, Ship in 24 hours, Free Online Support.
  • LED Module Can Work With Linsn, Novastar, Colorlight, Xixun huidu LED Control Card Etc.
  • 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Indoor P1.538 P1.56 LED Display Module 320x160mm 1/52 Scan SMD RGB LED Screen 200x150Main Specifications:

Items Parameter
Product Model P1.538mm Indoor LED Module
Module size 320mmx160mm
resolution ratio 208*104dots
Pixel pitch 1.538 mm
Pixel configuration RGB 3in1
Driving method Constant Current Driving,1/52 scan
Working voltage DC5V
Module maximum power consumption 55W/Pc
Led Lamps SMD1010 (Black LED)

Electrical Parameters

Frame rate 60Hz/Second
Refresh rate ≥3840HZ
Brightness in White Color (cd/m2): 800-1000 CD/m2
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating humidity 10%-90%RH
Average power consumption ≤300W/m2 (MAX 700)
Viewing Angle 140(Horizontal),140(Vertical)
Best Viewing Distance 1.5m-15m
Input Voltage 110V/60HZ-220V/50Hz Switchable
