Outdoor Street Pole LED Display Light Advertising with Solar Panel System

Outdoor Street Pole LED Display Light Advertising 640×1920 P4 LED light pole display screen 640X1280 and 640X1600

Pixel Pitch: 2.5mm 2.976mm 3mm 3.33mm 3.91mm 4mm 4.81mm 5mm 6mm 6.67mm 8mm 10mm
Cabinet Size: 1600mm x 640mm / 1440mm x 640mm / 1280mm x 640mm / 960mm x 640mm / 1536mm x 576mm / 1280mm x 512mm / 1152mm x 512mm / 1000mm x 500mm

Solar Street pole advertising led screen Quick Installation
Pole box led display connect with some pole by the bracket hoop. You can easily fix the pole led screen within 30 seconds, so it is great product for outdoor Icloud media. This hoop is stainless steel to avoid rust and some bad weather near the sea.

Solar power Light pole LED display Multi Control way
Pole light led display support for LAN, wifi and 4G/5G. Especially compatible with Icloud control system, that means you can control over 5,000pcs led display at the same time in the same software in your office or by your smart cellphone. The cloud system can well locate every pole led display by GPS and supervisor image of every led display. All the images will have a record in the software so that you can educe the excel to check adverts.
5G/WIFI control by mobile phone/computer/Ipad/Cloud, you can send the videos to the screens together without distance limitation
Cluster control, remote update Mobile APP control

WIFI control poster led display Waterproof and Stable material

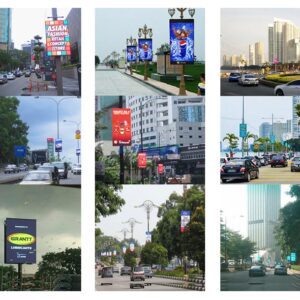

Street Light box Pole led display should be suitable for all bad weather in different regions in the world. The working temperature can be-40 to 60 degree and all the durable material is anti-corrosion. It can last at least 5 years without breakdown.

Solar Panel Pole LED Display for Road Advertising Widely Used in High Coverage
The Pole LED Screen for Road Advertising has unique design which makes it look beautiful and easy to install. It can be used on road, mall stage, high-grade residence district, tourist attractions, 4S stores, hospital entrance and many more outdoor places.

The digital street furniture of smart led screen display units equipped offering unrivalled outdoor image quality: strategically positioned across the entire area, it alternates between real-time local information and advertising, providing useful information for the public and exceptional visibility for advertisers.

P4 led pole display, P3 High Quality led pole display Street WIFI 4G double sided Advertising Pole Lamp Post LED Screen P4 Outdoor Pole LED Screen for Street Light Advertising 640X1280 LED Display Pole Light 640X1600

Outdoor Street Pole LED Display Light Advertising 640×1920 P4 LED light pole display screen 640X1280 Technical Parameters

Item	Technical Parameters
Nationstar Full black Gold Wire SMD LED Lamp Parameters
Item Name	LED Type
Red LED	SMD 1921
Green LED	SMD 1921
Blue LED	SMD 1921
LEEMAN LED Display Module Specification
Pixel Pitch	LeemanLED-P4mm
Pixels Density	62,500 pixels/m2
LED Configuration	Nationstar SMD RGB 3in1
Package Mode	SMD1921
Module Size	256mm X 256mm and 256mm x 128mm and 320mm x 160mm
Module Resolution	64 x 64 pixels and 64 x 32 pixels and 80 x 40 pixels
Module Pixles	4096 pixels and 2048 pixels and 3200 pixels
Max Power Consumpion	50W and 35W
Module Thickness	25mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	MBI5253 or ICN2163
Drive Type	Constant drive
Driving Method Scan Mode	Dynamic 1/8 Duty constant current
Port Interface Type	HUB75
Module Input Voltage	DC 5V
Brightness of White Balance	≥6500cd/㎡
Module Mask	Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification
Cabinet Size (W X H X D)	640mm x 960mm x 125mm or 640mm x 1280mm x 125mm or 640mm x 1440mm x 125mm or 640mm x 1600mm x 125mm
Cabinet Resolution (dot)	160 x 240 pixels or 160 x 320 pixels or 160 x 360 pixels
Module Quanity (pcs)	12pcs or 16pcs or 18pcs or 20pcs
Cabinet Pixels	51200 pixels
Pixel Density	62,500 pixels/m2
Cabinet Materials	Die Casting Aluminum Cabinet for rental purpose
Cabinet Weight	30kg per cabinet
Packaging	Fly case / Wooden box
Whole LEEMAN LED Display Screen Specification
Screen Brightness	≥6500cd/m2
Driving Method	Constant current
Best Viewing Distance	3m – 100m
Max. Power Consumption	800W/m2
Average Power Consumption	400W/m2
Gray Level	16bits input, 4096 levels
Display Color	256M
Frame Frequency	≥60Hz
Refresh Frequency	≥3840Hz – 6420Hz
Uninterrupted Working Hours	≥72 hours
Screen Life-span	≥100,000 hours
MTBF	≥10,000 hours
Discrete Blind Spot Rate	<1/10000
Continuous Blind Spot Rate	None
Waterproof Level	IP65
Blind Spot Rate	<1/10000
Protective Scale	For Outdoor and indoor use, waterproof
Screen Plainness	<±1mm
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Environment Temperature	Temperature:-20 Celsius~ 60 Celsius
Humidity	Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	Linsn LED, Novastar LED, Colorlight LED or as you required
Display Content	HDMI ,DVI, VGA, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Power Supply Brand	G-energy, MeanWell, Chuanglian or as you required
Certificate	CE, RoHS, FCC, UL, EMC
