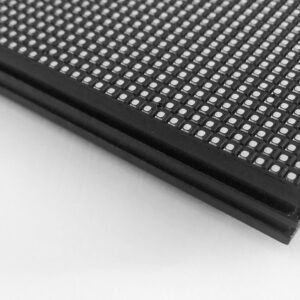

Outdoor SMD Full Color LED Display Module Outdoor P2.5 LED Module 320×160

Original price was: $31.27.Current price is: $18.67.

Pixel Pitch: 2.5mm

LED Type: SMD1415

Module Size: 320*160 mm

Model Pixel: 128*64Pixels

Certification: UL CUL ETL FCC CE ENEC ROHS LVD EMC VDE E/e Mark SAA EK PSE CSA ISO

SKU: Leeman-P2.5-outdoor-waterproof-led-module-128X64dots Categories: Outdoor LED Display Module 160x320, Outdoor P2.5 LED Module 320x160

Description

Shipping & delivery

Outdoor P2.5 LED Module 320×160 Outdoor P2 LED Panel

Outdoor P2.5mm SMD LED Display Module Size is 320mmx160mm With 128×64 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
If you want to build led screen,please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.

P2.5 Outdoor LED Module 320×160 Main Specifications:

Items	Parameter
Product Model	P2.5mm outdoor fine pitch LED Module
Module size	320x160mm
resolution ratio	128*64dots
Pixel pitch	2.5mm
Pixel density	160000dots/sqm
Pixel configuration	SMD 3in1
Driving method	Constant Current Driving,1/161scan
Working voltage	DC5V
Module maximum power consumption	65W/Pc
Led Lamps	SMD1415
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1920HZ
Brightness in White Color (cd/m2):	4500-5500 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤450W/m2 (MAX 850)
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	2.5m-25m
Input Voltage	110V/60HZ-220V/50Hz Switchable

High Quality LEDs:

High-Quality SMD 3in1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
